| Product Name |
| 10.1“ Capacitive Touch Monitor |
| Model No. |
| G101CTM |
| LCD Panel |
| IP Rating | IP65 Front/IP40 Back |
| Screen Diagonal | 10.1 |
| Display Active Screen Size(mm): | 223×125.2 |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1366×768 |
| Colours Displayed | 16.7M |
| Brightness (cd/m²) | 300, Max Be Customized To 1500 |
| Contrast | 800:1 |
| Dot Pitch(mm) | 0.264 |
| Typical Reaction Time (ms) | 6.5 |
| Visual Angle Horizontal/Vertical (°) | 160/160 (Optional: IPS) |
| Backlight / Backlight Lifetime (hours) | Led/50,000 |
| Transmittance Rate | ≤80% |
| Touch Panel |
| Touch Technology | Capacitive |
| Touch Connector | RJ45 |
| Touch Life (Contacts) | Capacitive≥50,000,000 |
| Surface Hardness | 7H |
| Touch Induction Intensity | 75g |
| Operation/Mechanical |
| Operating Temperature | -10°~ 60° |
| Humidity Range(RH) | 20% – 95% |
| Housing Material | Front with Brushed Aluminum |
| Back with Aluminum |
| Housing (mm) Lx W x H | 261.4×185.4×51 |
| Mounting | VESA75/VESA100 |
| Color | Silvery |
| Stability |
| Antistatic | Exposure 4KV-Air 8KV (Timing ≥ 16KV) |
| Anti-vibration | Amplitude:5-19HZ/1.0mm; Acceleration:19-200HZ/1.0g |
| Shock resistance | Acceleration:10g; Cycle:11ms |
| Anti-interference | EMC/EMI |
| Power |
| Power Supply | 100-240V 50-60HZ Active Switching; 12V 4A DC-Out |
| Operate Current(A) | <3.5 |
| Power Consumption | 35W |

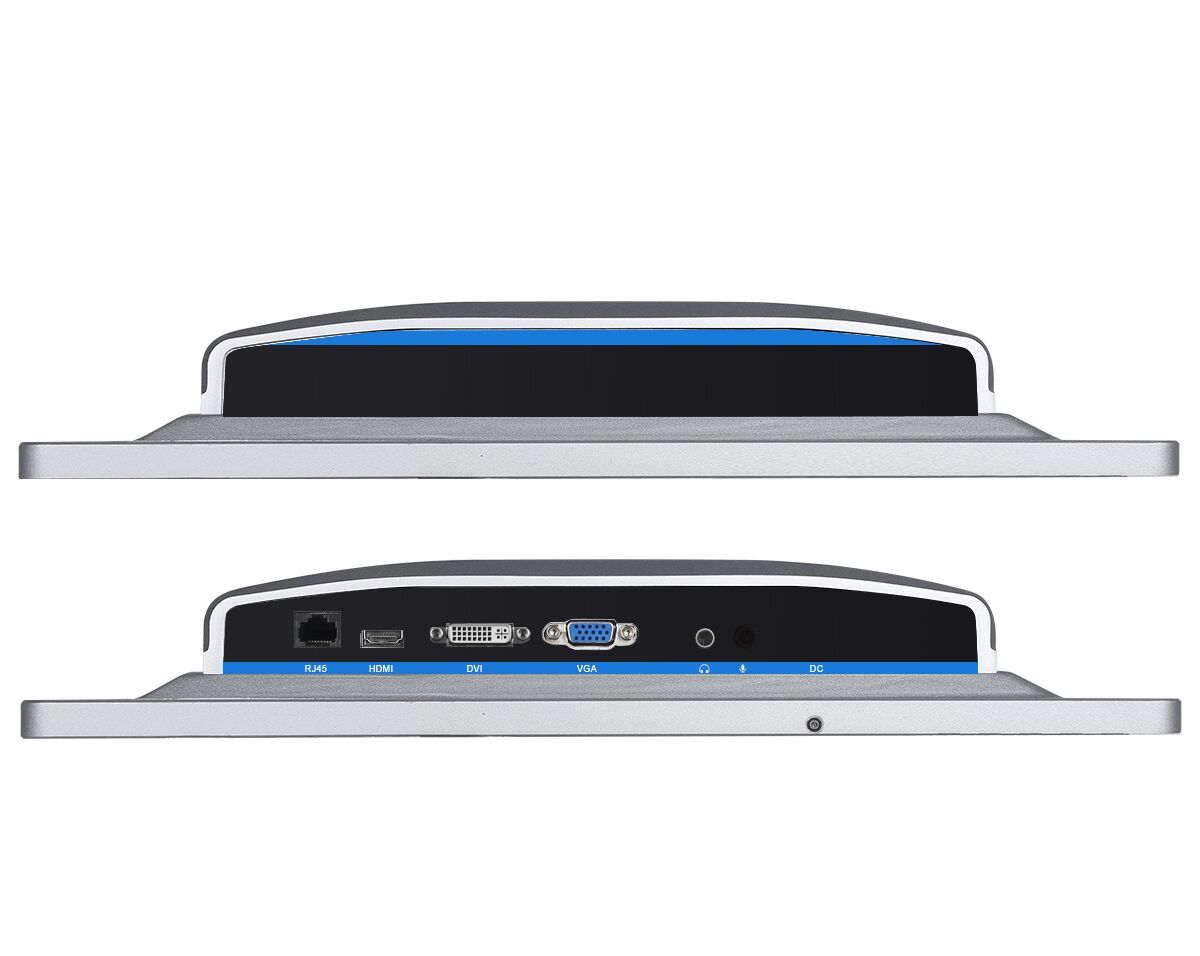

| External Connectors |
| 1x DC2.0 11.6-28V input |
| 1x HDMI (Support HDMI output, maximum support 1080P) |
| 1x VGA |
| 1x RJ45 (for touch) |
| 1x Audio I/O |
| Accessories in Package |
| User Manual |
| Installation Hook |
| Power Supply |
| Warranty |
| 2 Years |
