Product Name

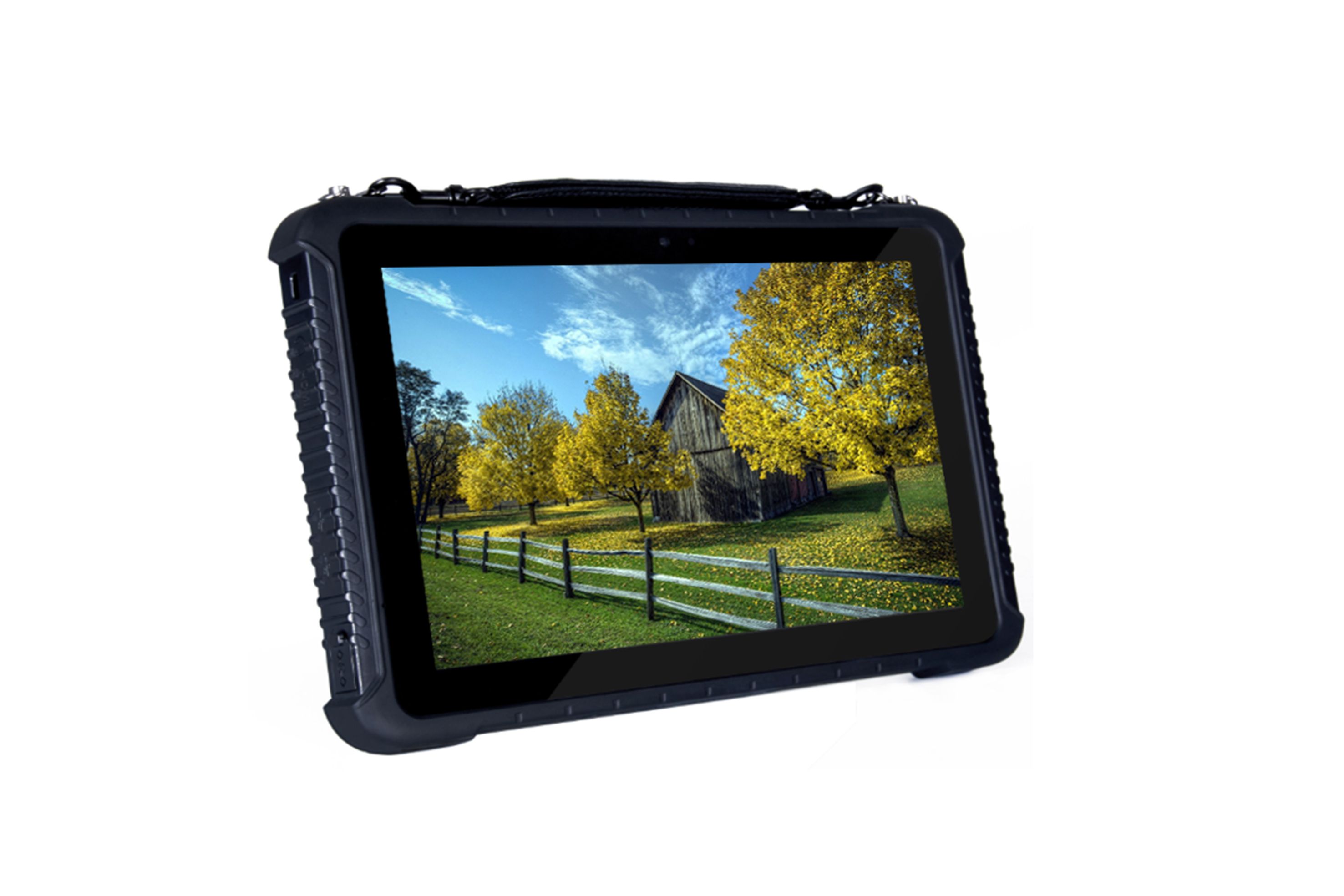

10.1″ Rugged Tablet IP65
Model No.
CPU: Intel® kabylake-Y Core™ m3-7Y30 , Turbo 2.6GHz
Operation System: trial-version Windows 10 Home or Windows 10 pro OS, original win10 Home or Pro or Windows10 IOT System is optional
Display & Touch Screen: 10.1 inch Capacitive Multi-touch IPS screen,1280*800 Pixels, or FHD 1920*1200pixels LCD Monitor + AR FILM is optional
Two Cameras: Front 2.0M camera, Back 5.0M Camera;
Memory & Storage: 4Gram DDR + 128G EMMC;or 8Gram+128G EMMC is optional
Wireless Network: 802.11 a/b/g/n/ac wireless (2.4G/5.8Ghz Dual-band wifi) and Blutooth4.1
Battery: Built-in 7.4V/5000mAh Lithium Battery, removable
I/O Ports:1*RJ45 Ethernet Port,1*DB9 RS232 Serial port, 1*Micro USB,1*USB2.0 Host,1*DC port 1*TF Card Slot, 1*HDMI 1.4a Port, 1*earphone jack, 1*Sim Card Slot
Rugged Durability: Waterproof and dustproof rate:IP65
Ruggedness: comply with MIL-STD-810G
3G or 4G Network:
Standard is 3G WCDMA,support GSM:850/900/1800/1900Mhz,3G WCDMA: 850/900/1900/2100MHz, 4G LTE is optional, 4G Frequency: FDD LTE Bands:B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
GPS:U-blox NEO-7
Barcode Scanner: 1D MOTO barcode scanner is optional,2D barcode scanner (Honeywell) is optional
Fingerprint scanner: Built-in Fingerprint Scanner is optional
Docking Station: 1*RJ45 Ethernet Port +2*USB2.0+1*RS232+1*DC,docking Station is optional
External Battery: 7.4V/5000mah is optional
Handheld Belt: is optional
Back Straps: Optional
Car Holder: Metal holder is optional
Dimension: 280*187*22mm
