Product Name

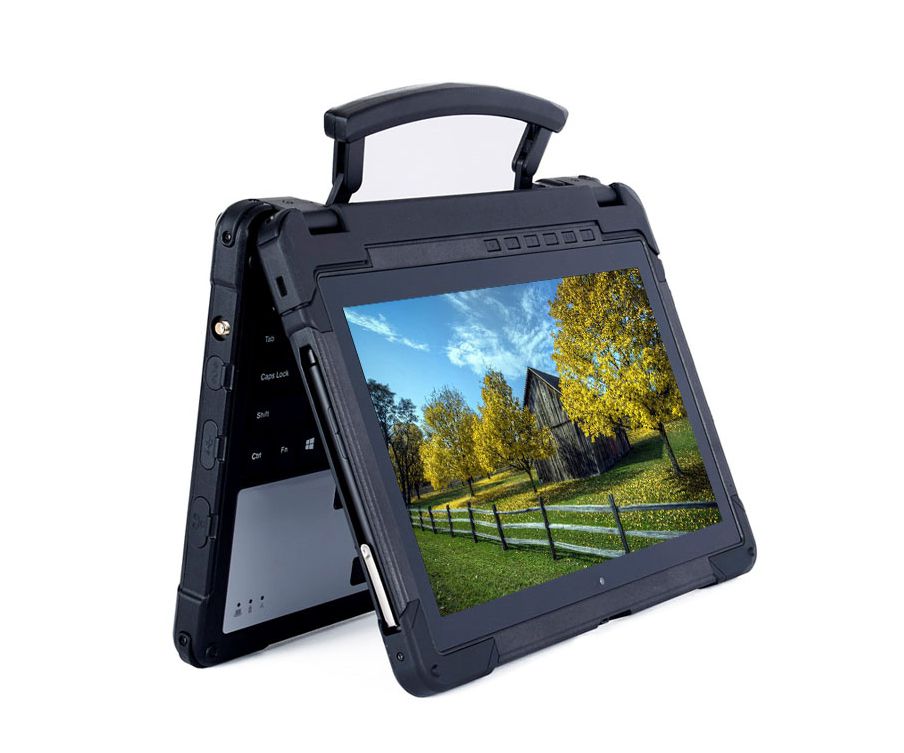

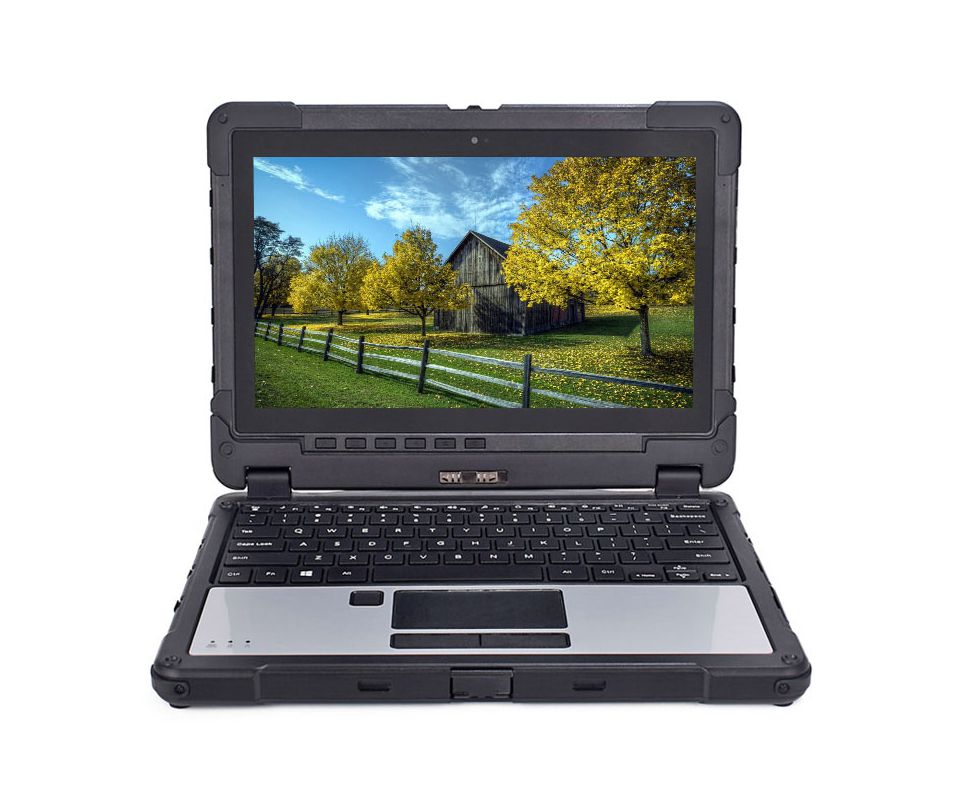

11.6″ Rugged Laptop IP65
Model No.
CPU: Intel Celeron™ Gemini lake N4100 1.1GHZ Turbo up to 2.4Ghz
Operation System: Windows 10 Home OS, original win10 Home or original win10 pro or Win10 IOT Enterprise is optional
Display & Touch Screen: 11.6 inch Capacitive Multi-touch IPS screen,1920*1080 Pixels;350cd/m2,SLR sunlight readable Film is optional
Two Cameras: Front 2.0M camera, Back 8.0M Camera
Memory & Storage: 4Gram DDR3 + 128G SSD
Wireless Network: 802.11 a/b/g/n/ac wireless (2.4G/5.8G Dual-band wifi) and Blutooth4.1;
Battery: Built-in 7.4V/5000mAh Lithium Battery
I/O Ports:1*RJ45 Ethernet Port,1*RS232 Serial port,1*RS485 Serial port, 1*USB3.0,2*USB2.0 Host,1*DC port 1*TF Card Slot, 1*HDMI Type-C Port, 1*earphone jack, 1*Sim Card Slot,1*GPS Antenna BNC Port (BNC module is optional);
Rugged Durability: Waterproof and dustproof rate:IP65
Ruggedness: comply with MILSTD-810G.
3G Network: Standard is 3G WCDMA:Support B5/B8/B3/B2=850/900/1800/1900MHZ,

3G WCDMA:B5/B8/B2/B1=850/900/1900/2100MHz;

4G LTE is optional, 4G Frequency: FDD LTE Bands:B1/B2/B3/B4/B5/B7/B8/B13/B17/ B20=2100/1900/1800/1700/850/2600/900/700C/700BC/800Mhz

GPS:U-blox NEO-7;support GLONASS,QZSS,GPS;
Barcode Scanner: Honeywell N3680 2D Barcode scanner module is optional
Fingerprint scanner: S22A (FPC1020 sensor) is optional
Stylus Pen: is optional
Keyboard: is optional
Keyboard Battery: 7.4V/6300mah is optional
