Description
| Product Name | |

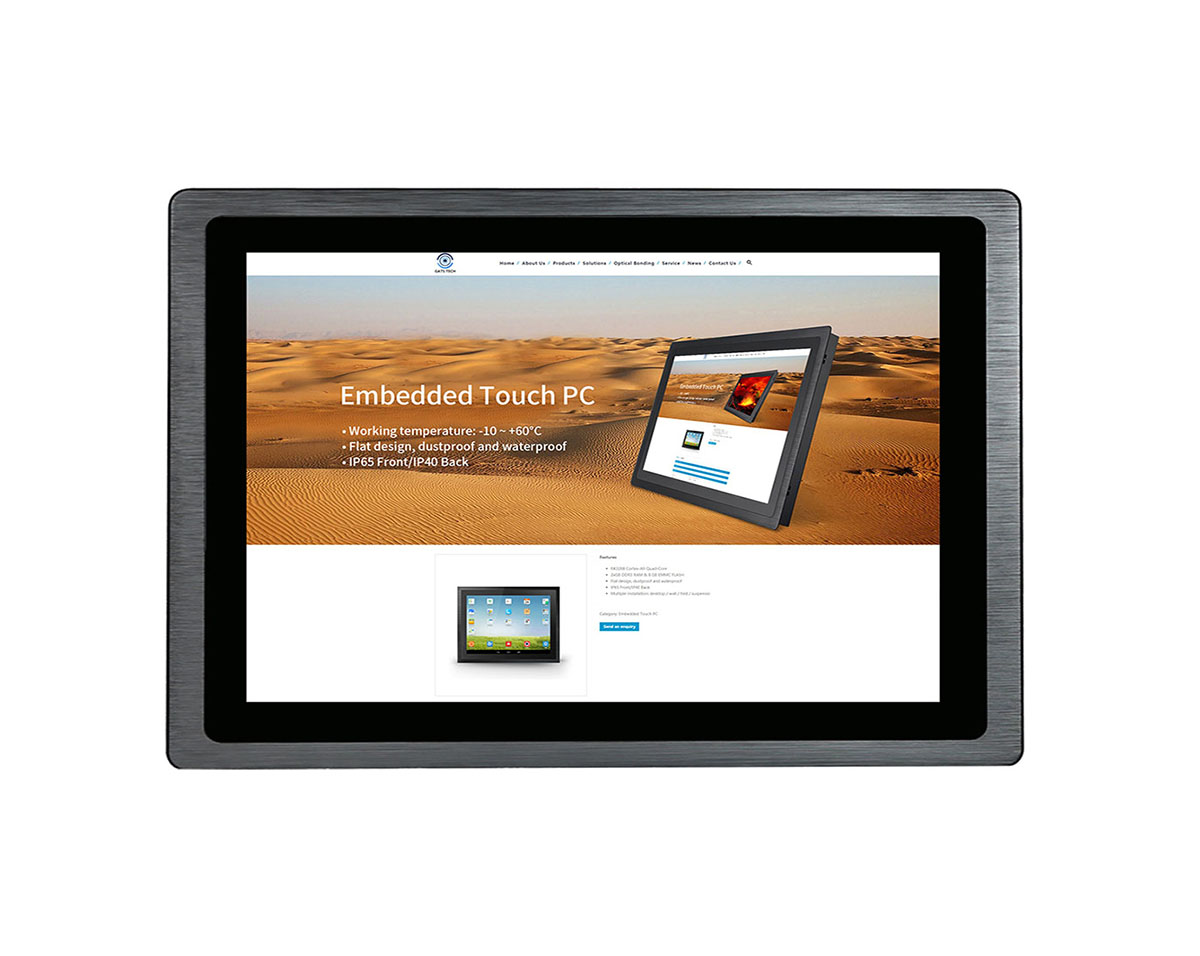

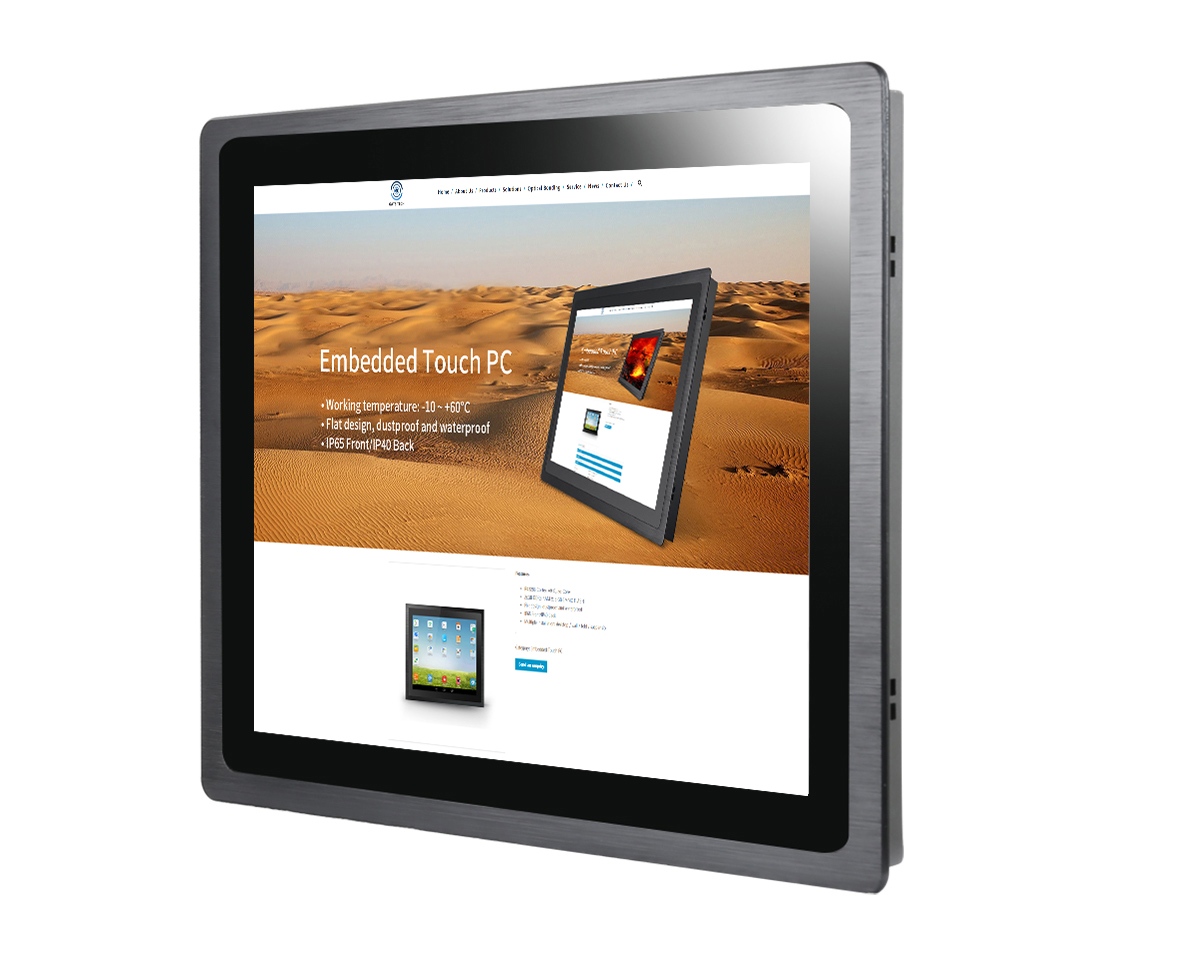

| 12.1“ Embedded Open Frame Touch PC | |
| Model No. | |
| G121CTPC2G8GA64OF | |
| PC System | |
| CPU | Allwinner® A64 Cortex™ A53 QuadCore 1.5GHz |
| Chipset | Intel Bay trail SOC |
| Graphic GPU | ARM® Mali400MP2 Dual Core Supporting HDMI 4K output |
| Audio | Integrated Audio Chip |
| Memory | 1x 2G LPDDR3 (Optional:4G) |
| Storage | 8G EMMC5.0 (Optional:4/16/32/64G) |
| Network | 10/100Mbits Network; (Optional3G; 4G;) WIFI 2.4G (Optional: dual-band 2.4G+5G); Bluetooth4.0 support |
| OS | Android 6.0 |
| LCD Panel | |
| IP Rating | IP65 Front/IP40 Back |
| Screen Diagonal | 12.1 |
| Display Active Screen Size(mm): | 246×184.5 |
| Aspect Ratio | 16:10 |
| Physical Resolution | 1280×800 |
| Colours Displayed | 16.7M |
| Brightness (cd/m²) | 400, Max Be Customized To 1500 |
| Contrast | 1000:1 |
| Dot Pitch(mm) | 0.264 |
| Typical Reaction Time (ms) | 5 |
| Visual Angle Horizontal/Vertical (°) | 160/160 (Optional: IPS) |
| Backlight / Backlight Lifetime (hours) | Led/50,000 |
| Transmittance Rate | ≤80% |
| Touch Panel | |
| Touch Technology | Capacitive 10-point Multi-touch (Optional: Resistive) |
| Touch Connector | RJ45 |
| Touch Life (Contacts) | Resistive≥35,000,000 |
| Capacitive≥50,000,000 | |
| Surface Hardness | 7H |
| Touch Induction Intensity | 75g |
| Operation/Mechanical | |
| Operating Temperature | -10°~ 60° |
| Relative humidity(RH) | 0 ~ 65% (without condensation) |
| Housing Material | Front with Brushed Aluminum |
| Back with Aluminum | |
| Housing (cm) Lx W x H | 319x257x56.5 |

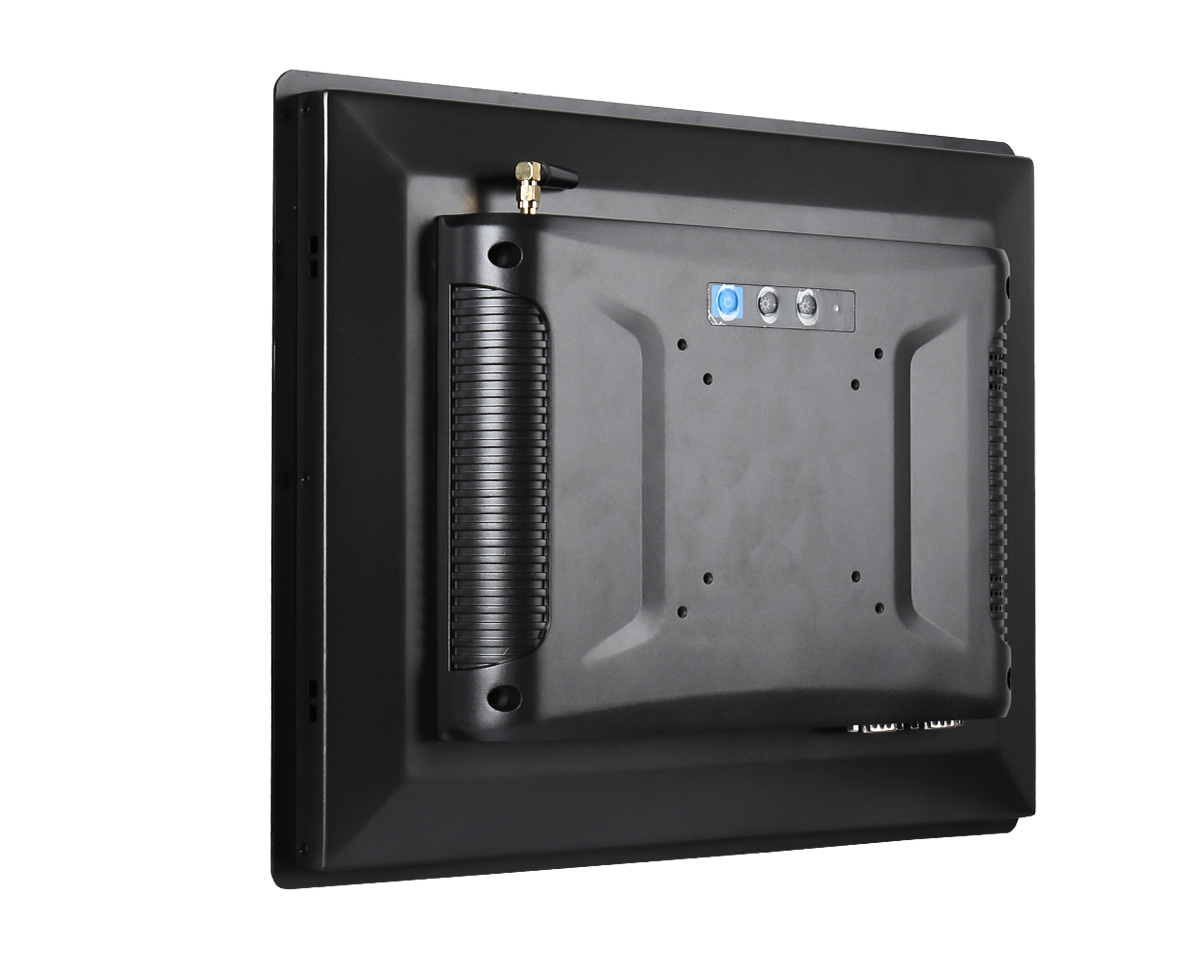

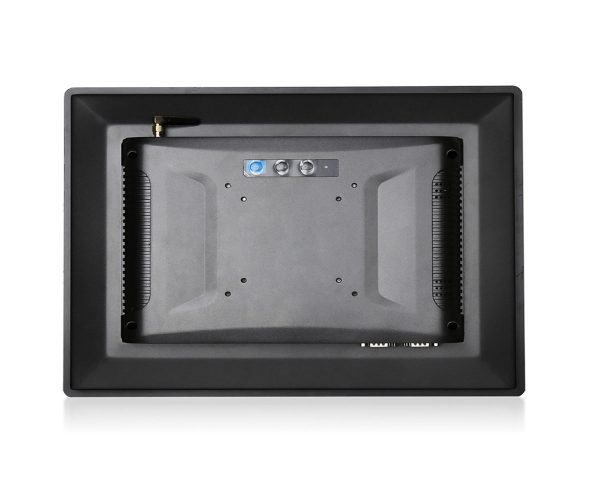

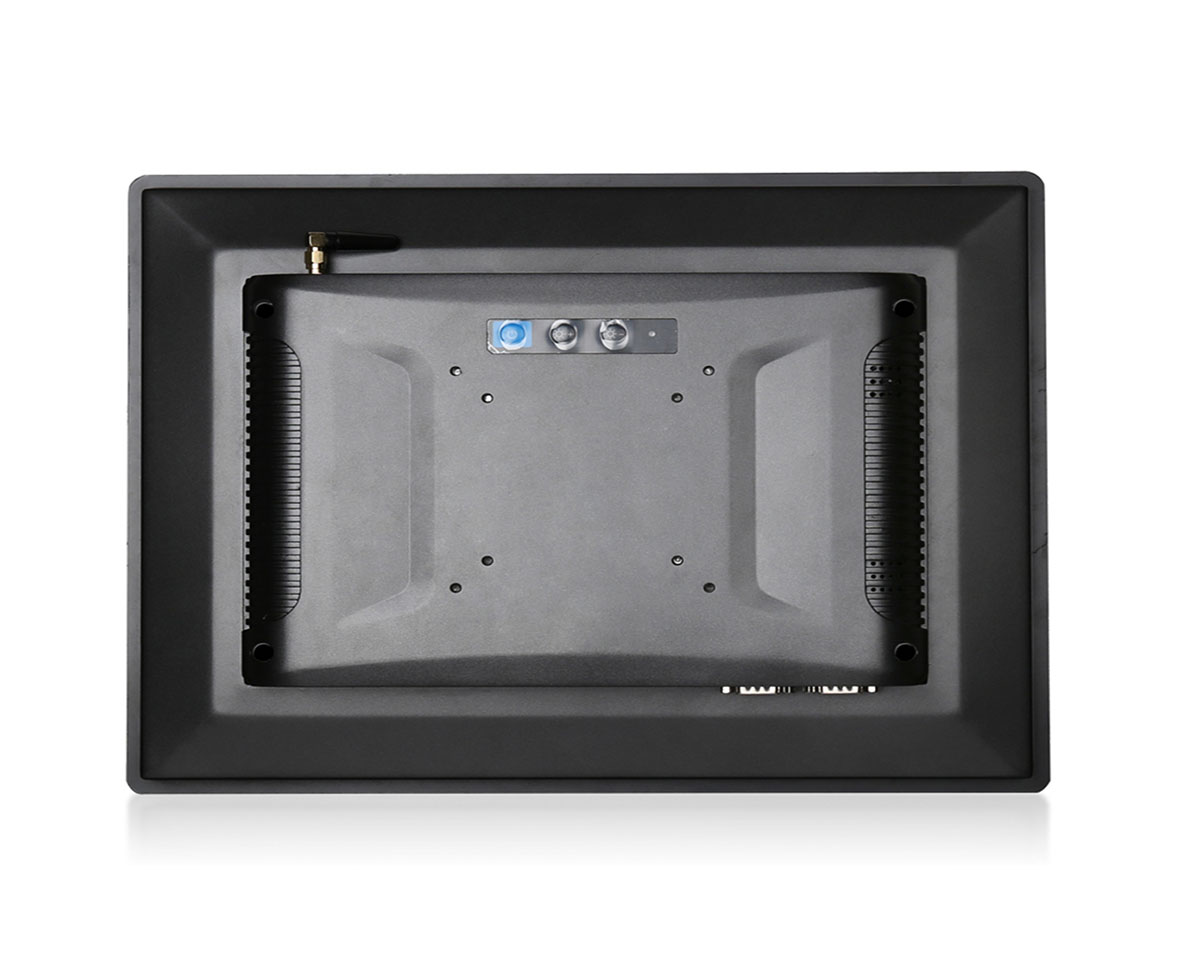

| Mounting | VESA75/VESA100 |
| Color | Black/Slivery |
| Power | |
| Power Supply | 100-240V 50-60HZ Active Switching; 12V – 2.5A DC-Out |
| Working Power | 12V-5A |
| Power Consumption | <45W |

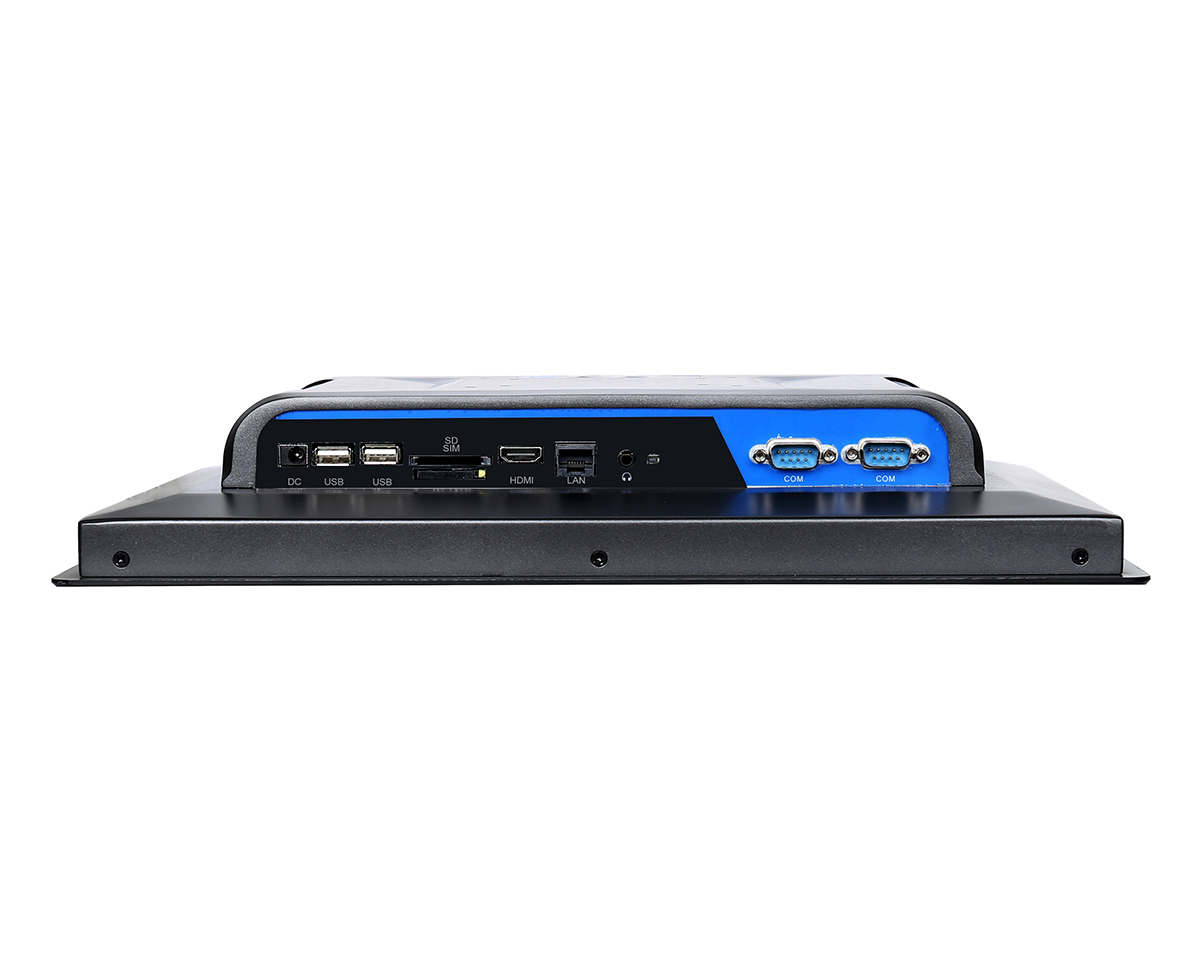

| External Connectors | |
| 1x USB2.0 | |
| 1xDC 2.0 | |
| 1x HDMI (Support HDMI output, maximum support 1080P) | |
| 1x RJ-45 10/100Mbits | |
| 1x SD/TF Slot | |
| 1x Audio I/O | |
| 1x SIM Slot | |
| 2x COM (Default RS232 Protocol, Can Change 422/485 Protocol) | |
| Accessories in Package | |
| User Manual | |
| Installation Hook | |
| Power Supply | |
| Warranty | |
| 2 Years | |
