Product Name

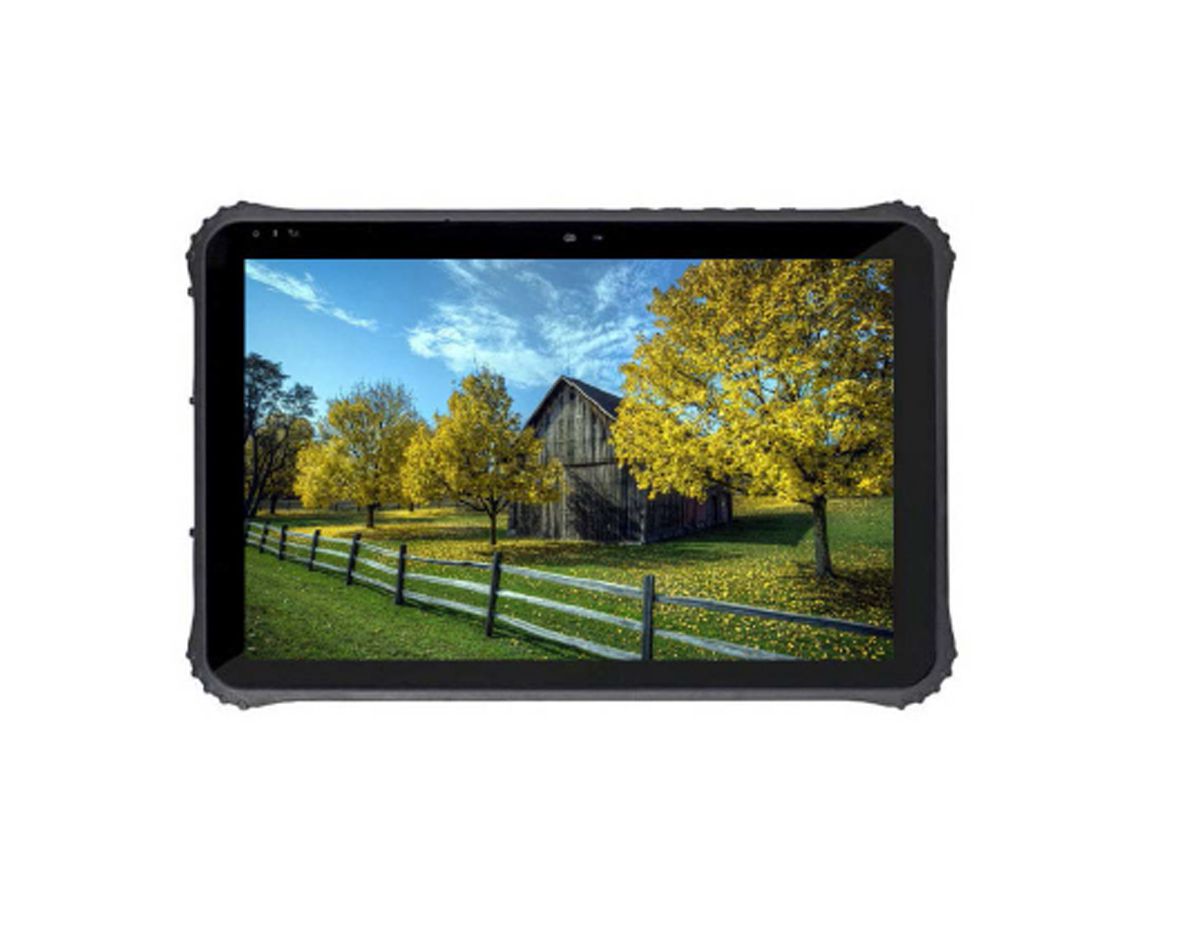

12.2″ Rugged Tablet IP65
Model No.
CPU: Intel Atom Cherry-Trail Z8350 Quad-core 1.42Ghz,Turbo 1.92GHz
Operation System: pre-install trial-versions Windows 10 Home system, original win10 Home or win10 Pro or IOT System is optional
Display & Touch Screnn: 12.2inch Capacitive Multi-touch IPS screen,1920*1200 Pixels; AR Film is optional
Two Cameras: Front 2.0M camera, Back 5.0M Camera
Memory & Storage: 4Gram DDR + 64G EMMC
Wireless Network: 802.11 a/b/g/n wireless (2.4G/5.0Ghz Dual-band wifi) and Blutooth4.2
Battery: Built-in 3.7V/12600mAh Lithium Battery, removable
I/O Ports: 2*USB Host(4-pin),1*USB3.0(9-pin),1*micro USB, 1*RS232 (DB9), 1*RS485(DB9),1*RJ45 port,1*Micro HDM-I 1.4a, 1*earphone jack, 1*Sim Card Slot
Waterproof And DustProof Rate: IP65; DropProof rate:MIL-STD-810G 1M
4G Network: 4G Frequency:FDD LTE Bands:B1/B3/B5/B7/B8/B20; TDD LTE Bands: B38/B39/B40/B41.
GPS: UBLOX NEO-7 module
NFC: 13.56Mhz is optional
Barcode Scanner: 1D barcode scanner MOTO module is optional
2D barcode scanner, Honeywell N3680 module is optional

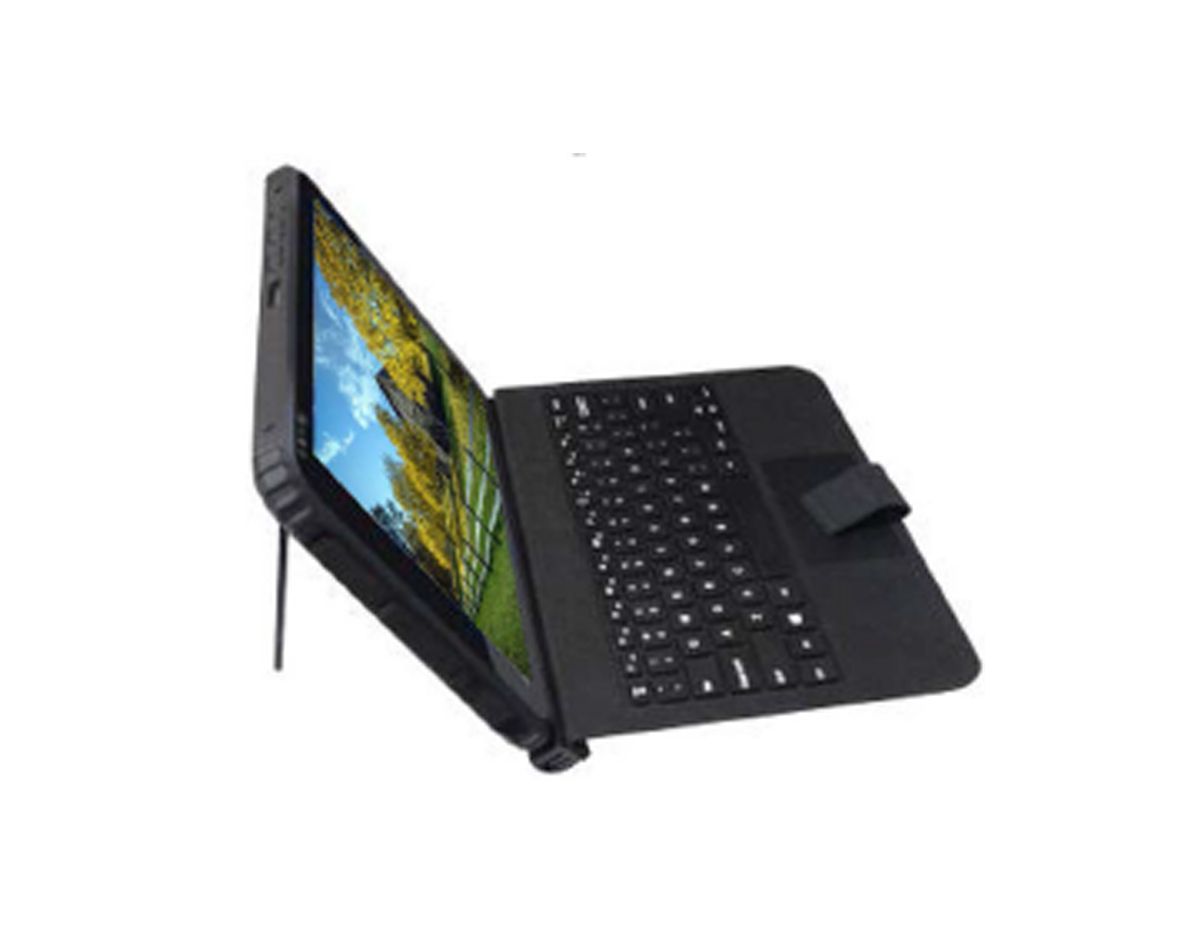

Leather case with keyboard: is optional
External Battery: 12600mah is optional
Handheld Belt: is optional; back strap: W:20+/-1mm,L:228.78+/-1.5mm; weight:125g is optional;
Car holder: Material:Aluminum alloy;Aluminum alloy Tube Size:138mm or 170mm, Aluminum alloy Tube weight:3KGS, is optional
