Features

  • Intel Celeron Quad Core J1900 CPU
  • 2GB RAM & 32GB Industrial SSD
  • Supports Win7/8/10, Linux (32Bit, 64Bit)
  • Working temperature: -10°C ~ +60°C
  • IP65 grade standard water-proof,dust-proof for front panel
  • 365 days*24hours working for all-weather
  • 10mm enhanced display panel, stronger impact resistance
  • Support embedded, wall-mounted, rack-mounted, desktop, cantilever support
  • VESA 75/100 Mounting
  • 2 years guarantee

Category:

Description

Product Name

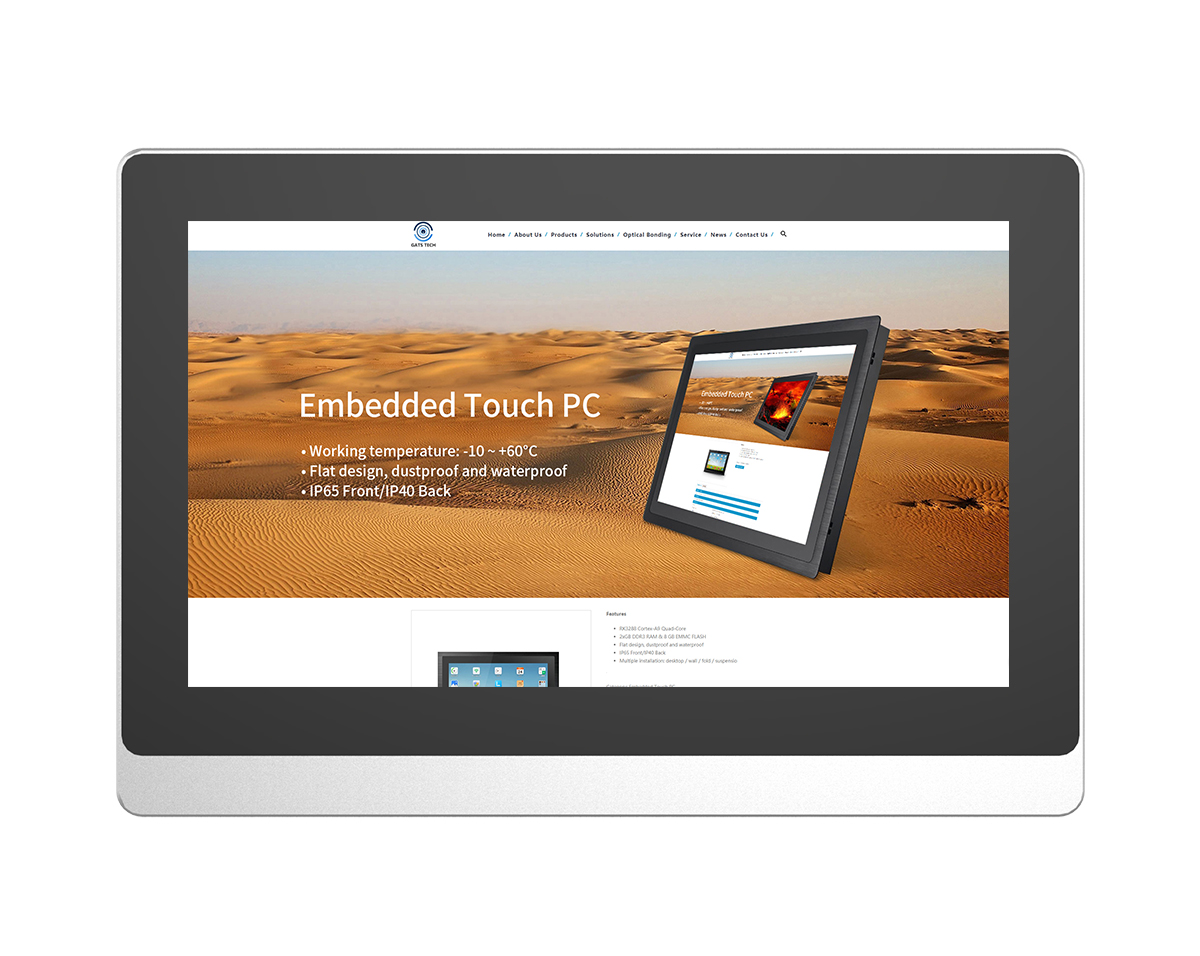

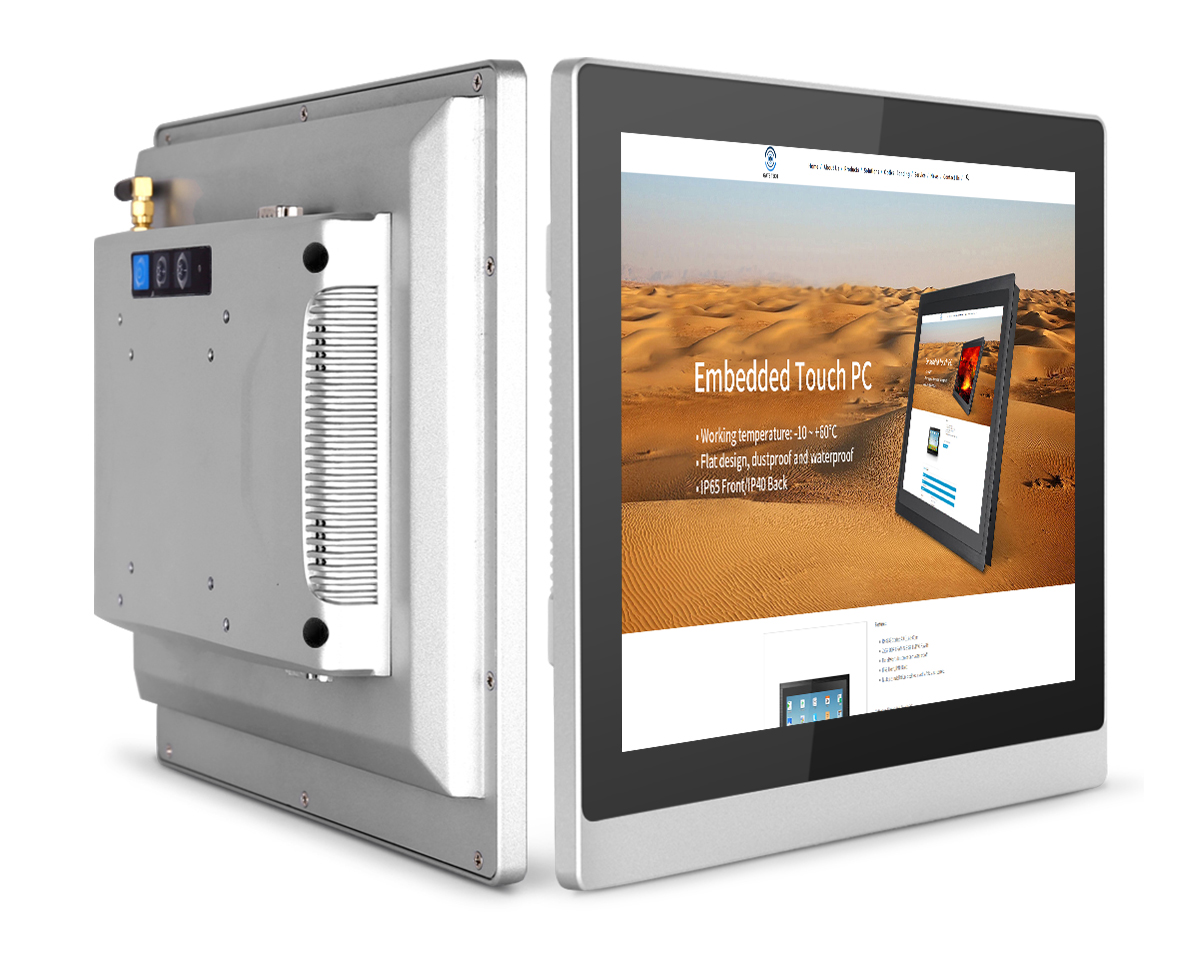

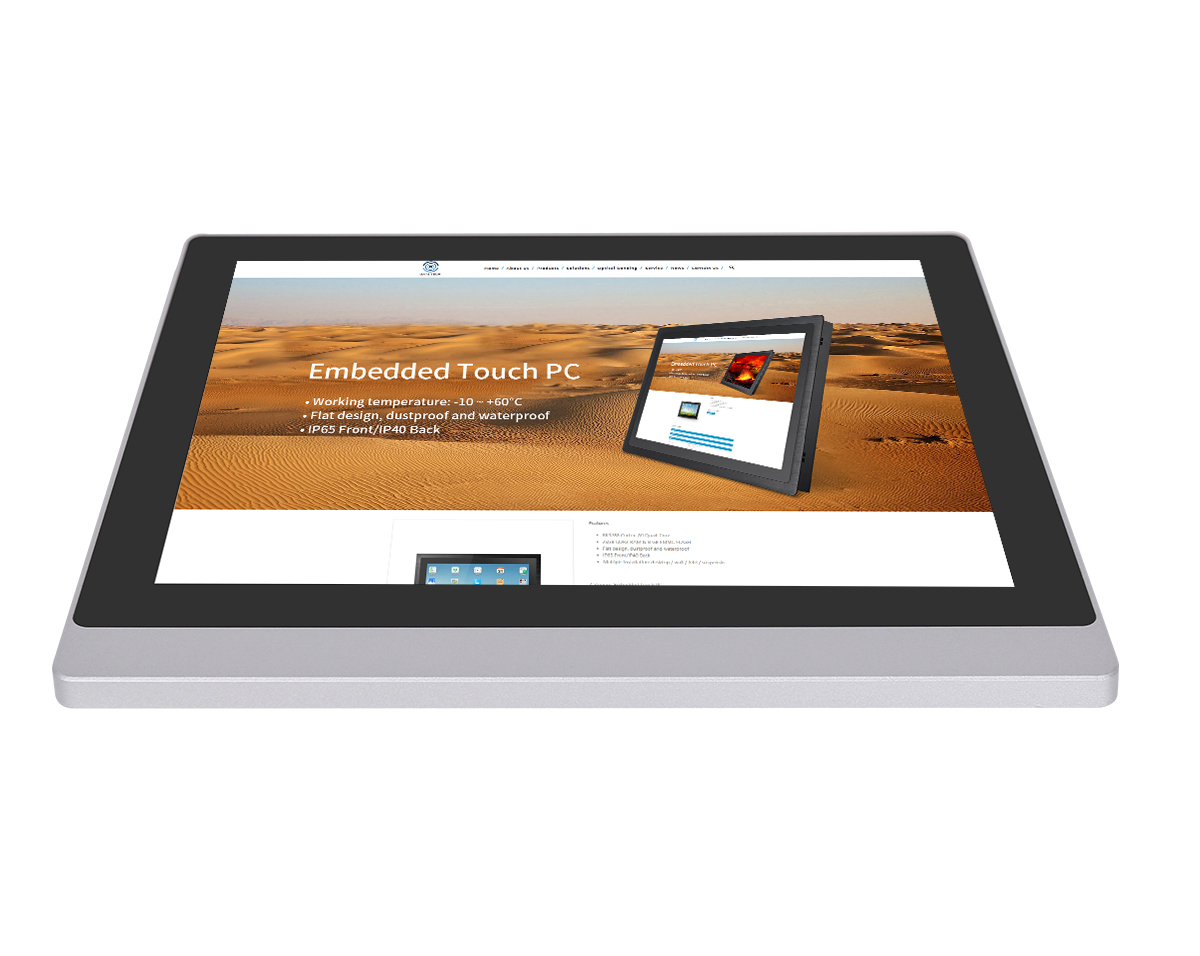

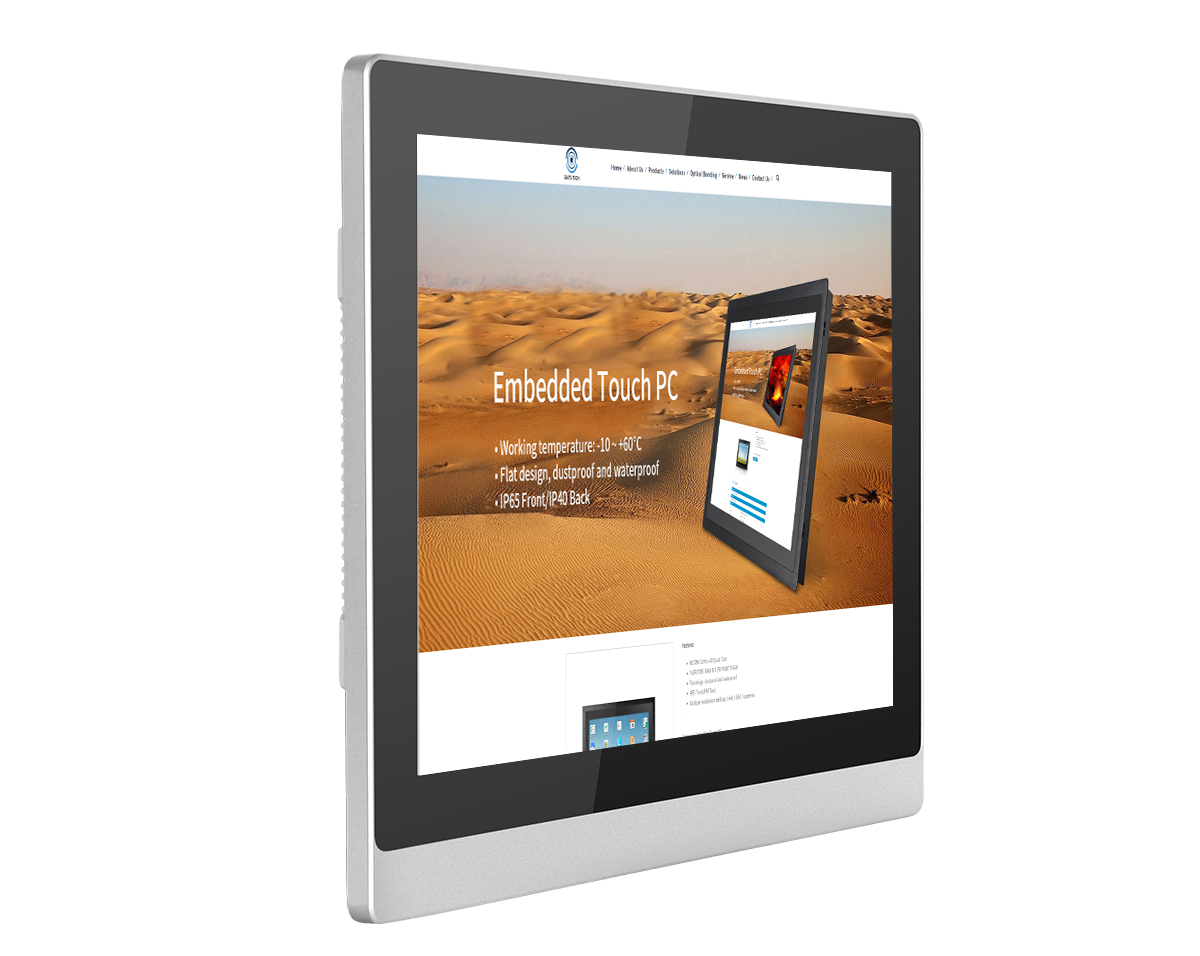

17.3“ Resistive Touch PC
Model No.
G173RTPC2G32GJ1900
PC System
CPU Intel Celeron Quad Core J1900 2GHz

optional:

Intel Celeron 1037 1.8GHz dual core

Intel H81 equipped with Core i3/i5/i7

Chipset Intel Bay trail SOC
Graphic GPU Intel HD Graphics
Audio Integrated Audio Chip
Memory 2G DDR3 (Optional:4G/8G/16G)
Storage 32G SSD (Optional:64G/128G/256G/512G/500G HDD)
Network RJ45, WIFI, (Optional 3G,4G)
OS Support windows7/8/10,linux,Ubuntu
LCD Panel
IP Rating IP65 Front/IP40 Back
Screen Diagonal 17.3
Display Active Screen Size(mm): 216.2×383.3
Aspect Ratio 16:9
Physical Resolution 1920×1080
Colours Displayed 16.7M
Brightness (cd/m²) 300, Max Be Customized To 1500
Contrast 700:1
Dot Pitch(mm) 0.264
Typical Reaction Time (ms) 6.5
Visual Angle (°) 85/85/85/85 (L/R/U/D) (Optional: IPS)
Backlight / Backlight Lifetime (hours) Led/50,000
Transmittance Rate ≤80%
Touch Panel
Touch Technology Resistive
Touch Connector USB
Touch Life (Contacts) Resistive≥30,000,000
Surface Hardness 7H
Touch Induction Intensity 75g
Operation/Mechanical
Operating Temperature (°C) -10 ~ +60
Relative humidity 95% (without condensation)

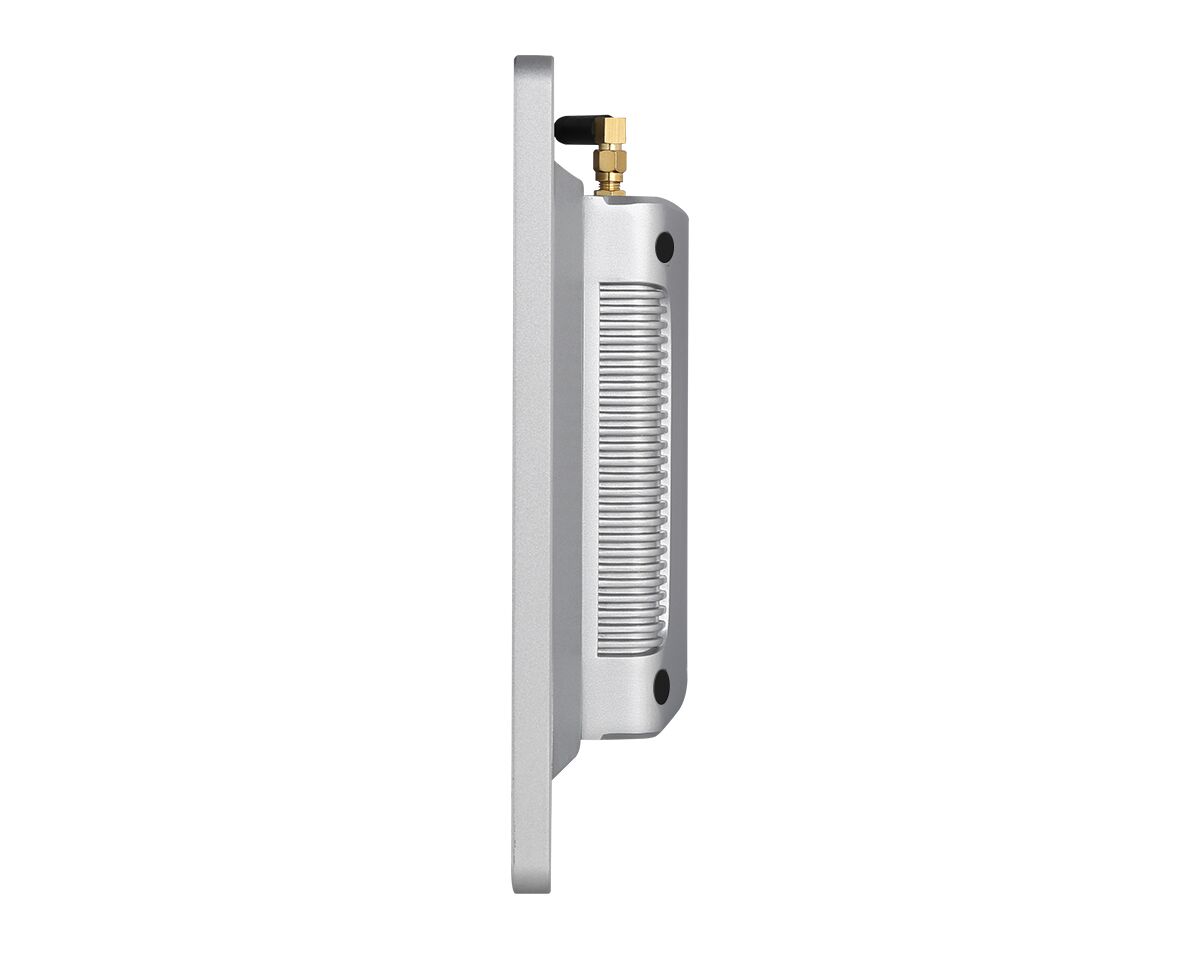

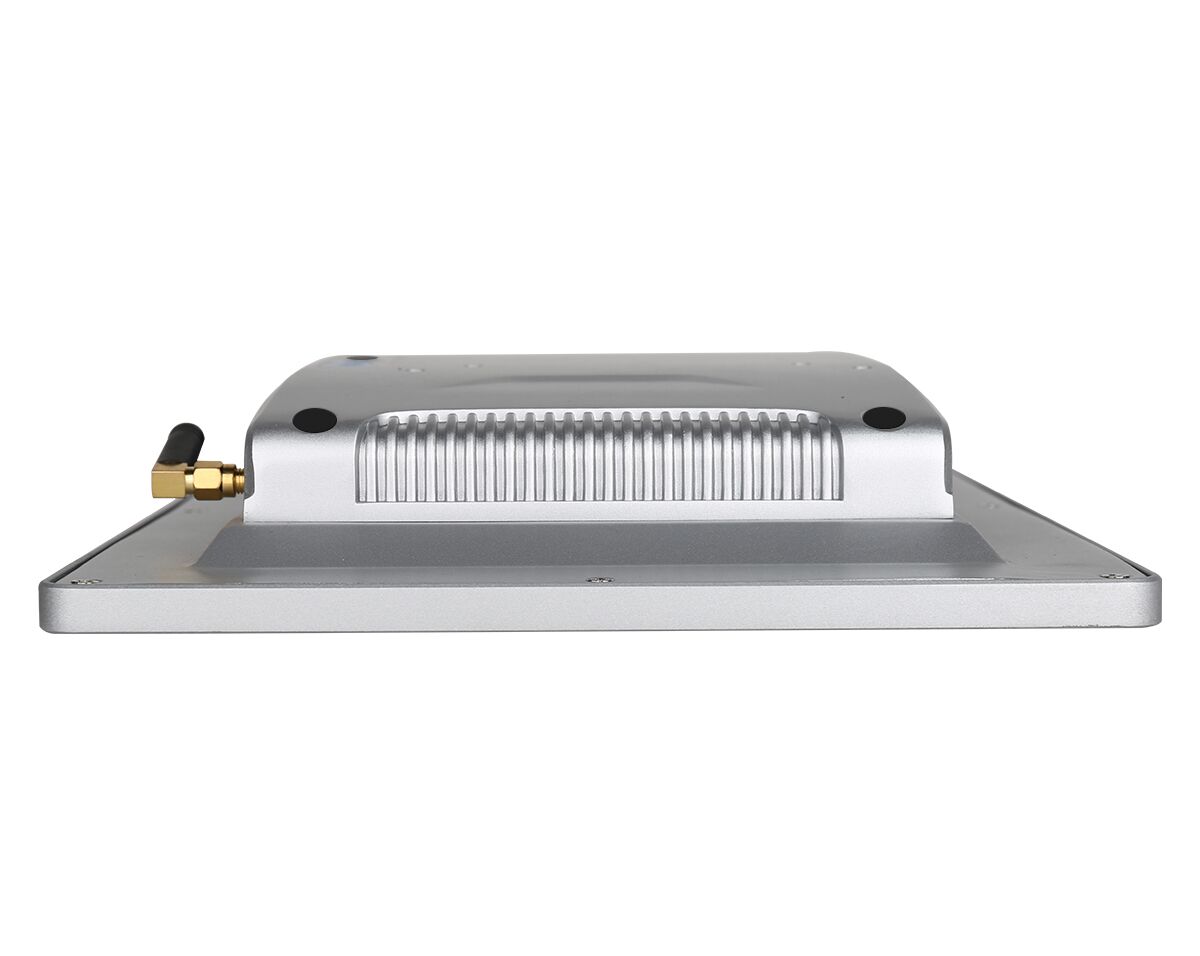

Housing Material Full body made of Aluminum alloy
Housing (mm) Lx W x H 285.4×427.7×59.3
Mounting VESA75/VESA100
Color Silvery
Power
Power Supply 100-240V 50-60HZ ACDC Active Switching; 12V -5A DC-Out
Working Power 12V-5A
Power Consumption ≤ 48W

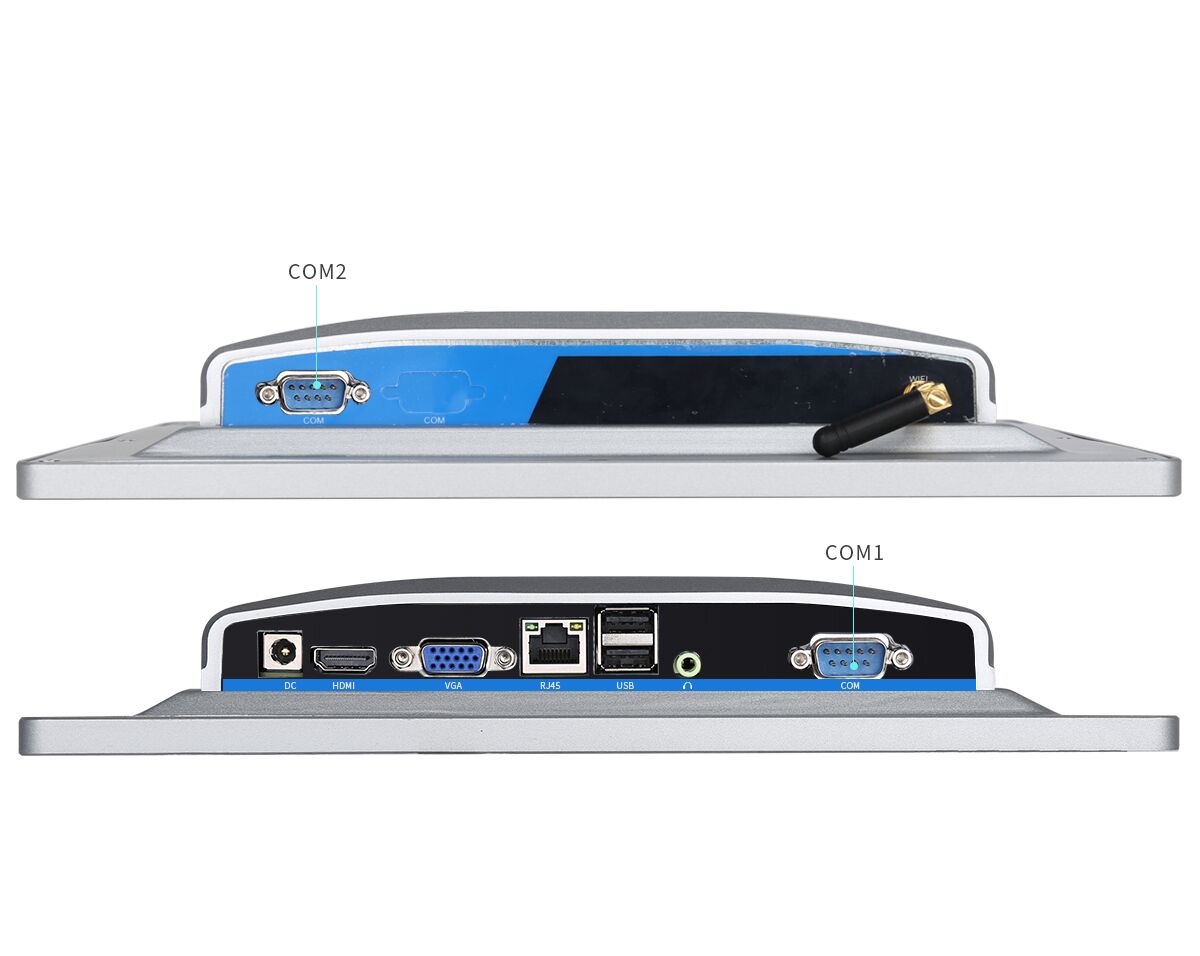

External Connectors
2x USB2.0
1xDC 2.5
1x HDMI (Support HDMI output, maximum support 1080P)
1x VGA, DB15, support for synchronous dual display and differential display
1x RJ-45
1x Realtec GB LAN 8111F, WOL-Wake On Lan
1x Audio I/O
1x SIM Slot
2x COM (Default RS232 Protocol, Can Change 422/485 Protocol)
Accessories in Package
User Manual
Installation Hook
Power Supply
Warranty
2 Years
