Features

  • Allwinner® A64 Cortex™ A53 QuadCore 1.5GHz Processor
  • 2GB LPDDR3 RAM & 8 GB EMMC 5.0
  • 10/100Mbits Network; (Optional 3G; 4G; ) WIFI 2.4G (Optional: dual-band 2.4G+5G); Bluetooth4.0 support
  • Flat design, dustproof and waterproof
  • IP65 Front/IP40 Back
  • Multiple installation: desktop / wall / fold / suspensio
  • VESA 75/100 Mounting
  • 2 years guarantee

Category:

Description

Product Name
17“  Embedded Touch PC
Model No.
G17CTPC2G8GA64
PC System
CPU Allwinner® A64 Cortex™ A53 QuadCore 1.5GHz
Chipset Intel Bay trail SOC
Graphic GPU ARM® Mali400MP2 Dual Core Supporting HDMI 4K output
Audio Integrated Audio Chip
Memory 1x 2G LPDDR3 (Optional:4G)
Storage 8G EMMC5.0 (Optional:4/16/32/64G)
Network 10/100Mbits Network; (Optional 3G; 4G; )WIFI 2.4G (Optional: dual-band 2.4G+5G); Bluetooth4.0 support
OS Android 6.0
LCD Panel
IP Rating IP65 Front/IP40 Back
Screen Diagonal 17
Display Active Screen Size(mm): 270.3×337.9
Aspect Ratio 4:3
Physical Resolution 1280×1024
Colours Displayed 16.7M
Brightness (cd/m²) 350, Max Be Customized To 1500
Contrast 800:1
Dot Pitch(mm) 0.264
Typical Reaction Time (ms) 5
Visual Angle Horizontal/Vertical (°) 160/160 (Optional: IPS)
Backlight / Backlight Lifetime (hours) Led/50,000
Transmittance Rate ≤80%
Touch Panel
Touch Technology Capacitive 10-point Multi-touch (Optional: Resistive)
Touch Connector RJ45
Touch Life (Contacts) Resistive≥35,000,000
Capacitive≥50,000,000
Surface Hardness 7H
Touch Induction Intensity 75g
Operation/Mechanical
Operating Temperature -10°~ 60°
Relative humidity(RH) 0 ~ 65% (without condensation)
Housing Material Front with Brushed Aluminum
Back with Aluminum
Housing (cm) Lx W x H 340.7×383.3×59.8

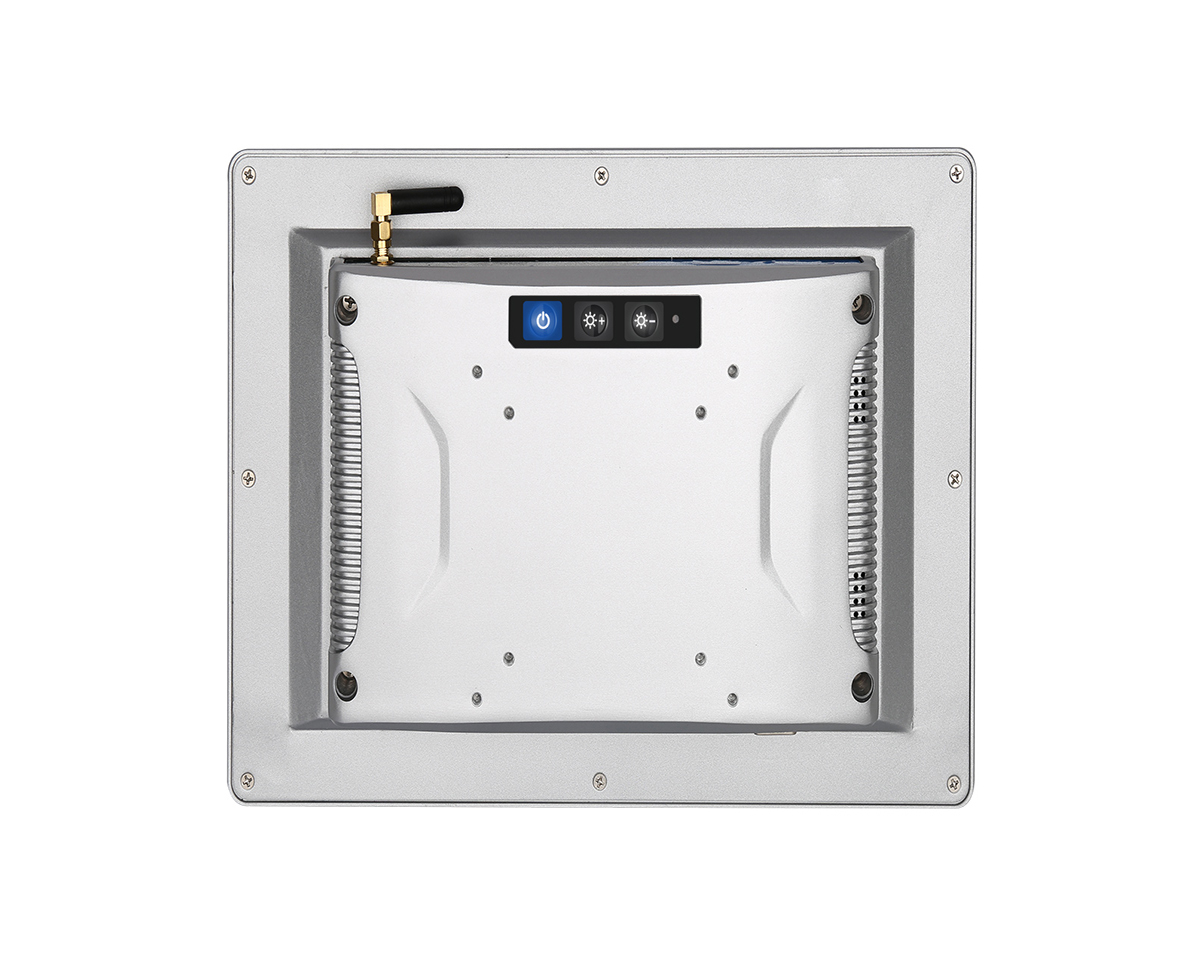

Mounting VESA75/VESA100
Color Black/Slivery
Power
Power Supply 100-240V 50-60HZ Active Switching; 12V – 2.5A DC-Out
Working Power 12V-2.5A
Power Consumption <12W

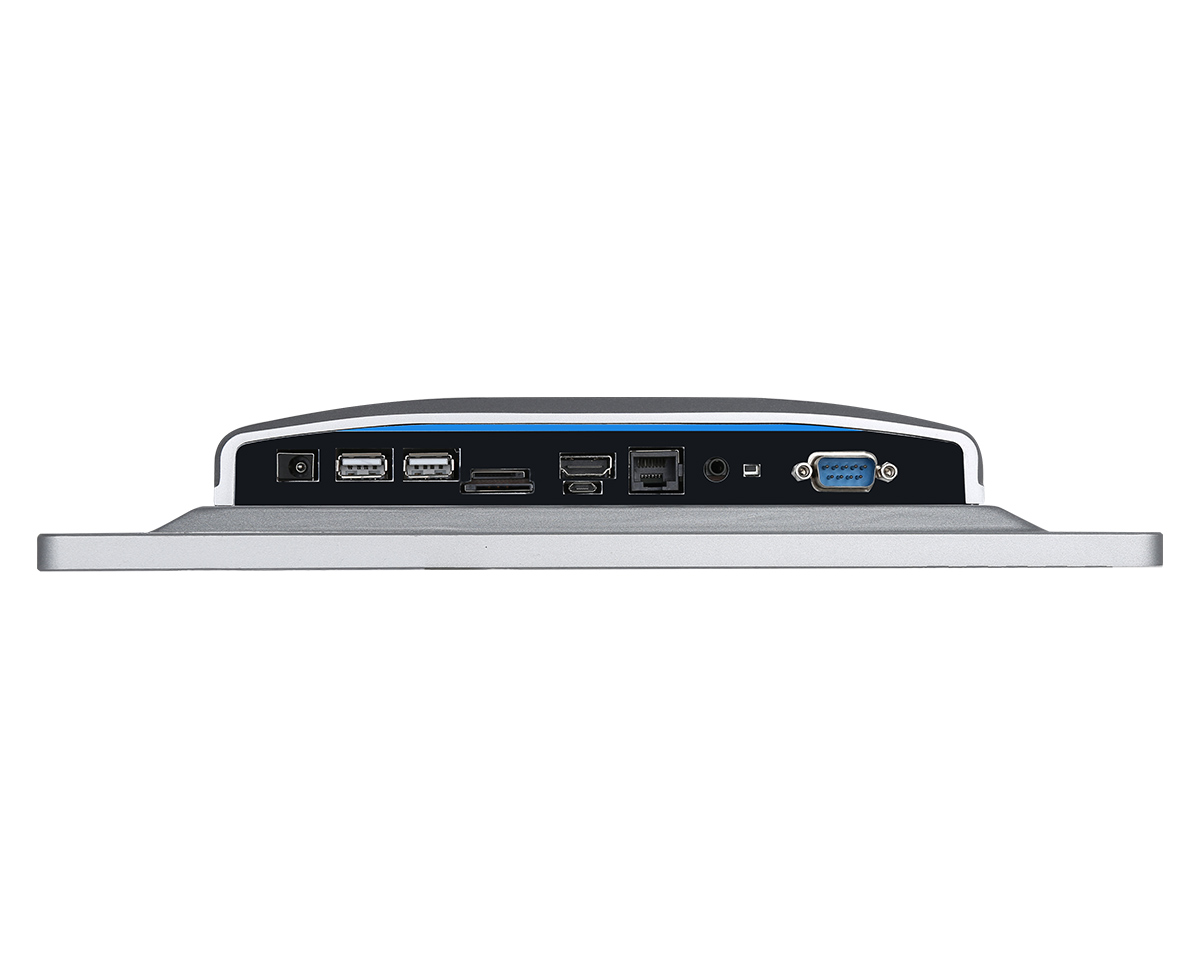

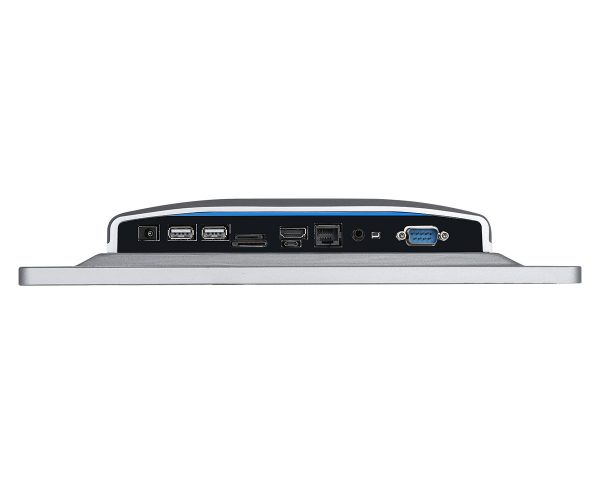

External Connectors
1x USB2.0
1xDC 2.0
1x HDMI (Support HDMI output, maximum support 1080P)
1x RJ-45
1x Realtec GB LAN 8111F, WOL-Wake On Lan
1x Audio I/O
1x SIM Slot
2x COM (Default RS232 Protocol, Can Change 422/485 Protocol)
Accessories in Package
User Manual
Installation Hook
Power Supply
Warranty
2 Years
