• Intel Celeron Quad Core J1900 CPU
  • 2GB RAM & 32GB Industrial SSD
  • Supports Win7/8/10, Linux (32Bit, 64Bit)
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • Working temperature: -10°C ~ +60°C
  • IP65 grade standard water-proof,dust-proof for front panel
  • 365 days*24hours working for all-weather
  • 10mm enhanced display panel, stronger impact resistance
  • Support embedded, wall-mounted, rack-mounted, desktop, cantilever support
  • VESA 75/100 Mounting
  • 2 years guarantee


Product Name

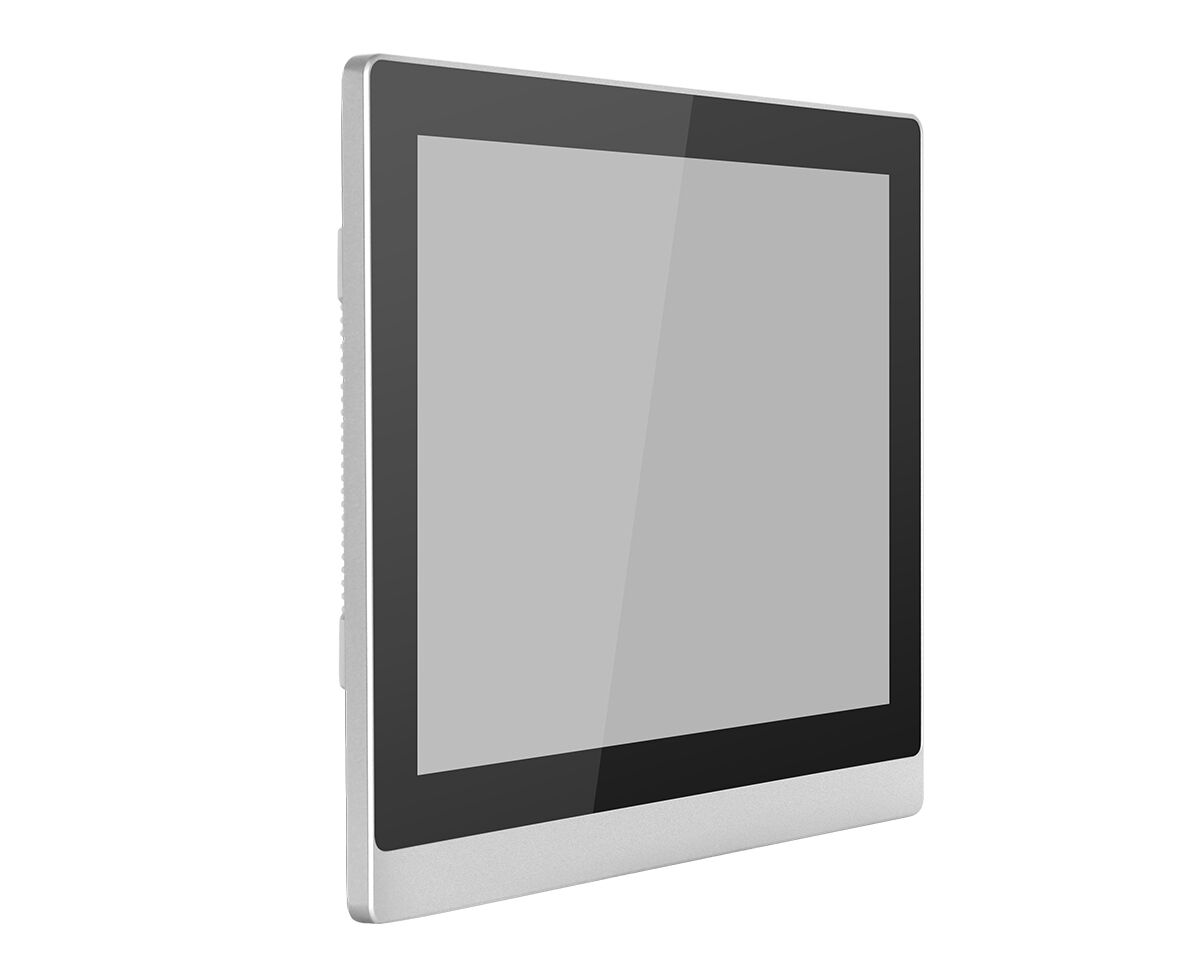

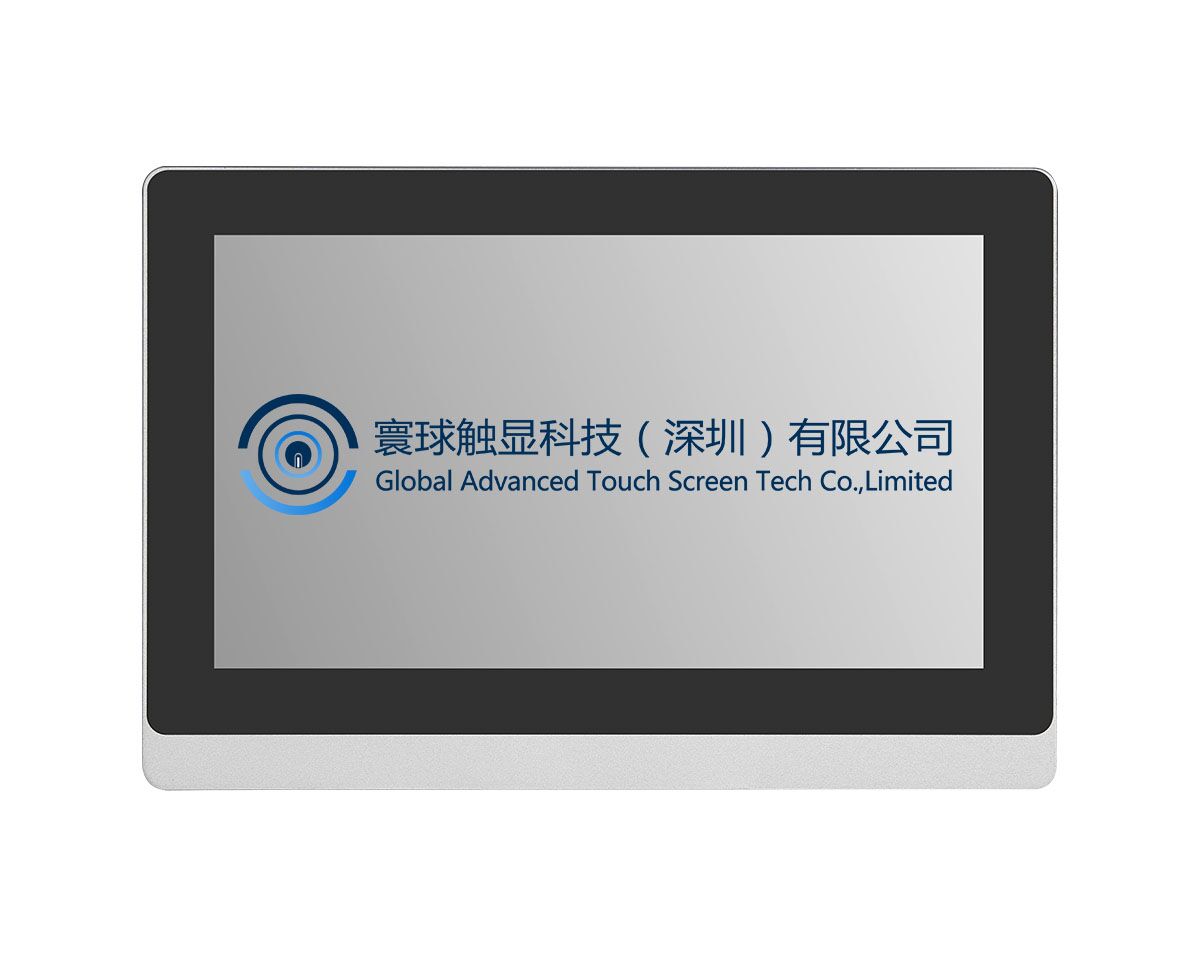

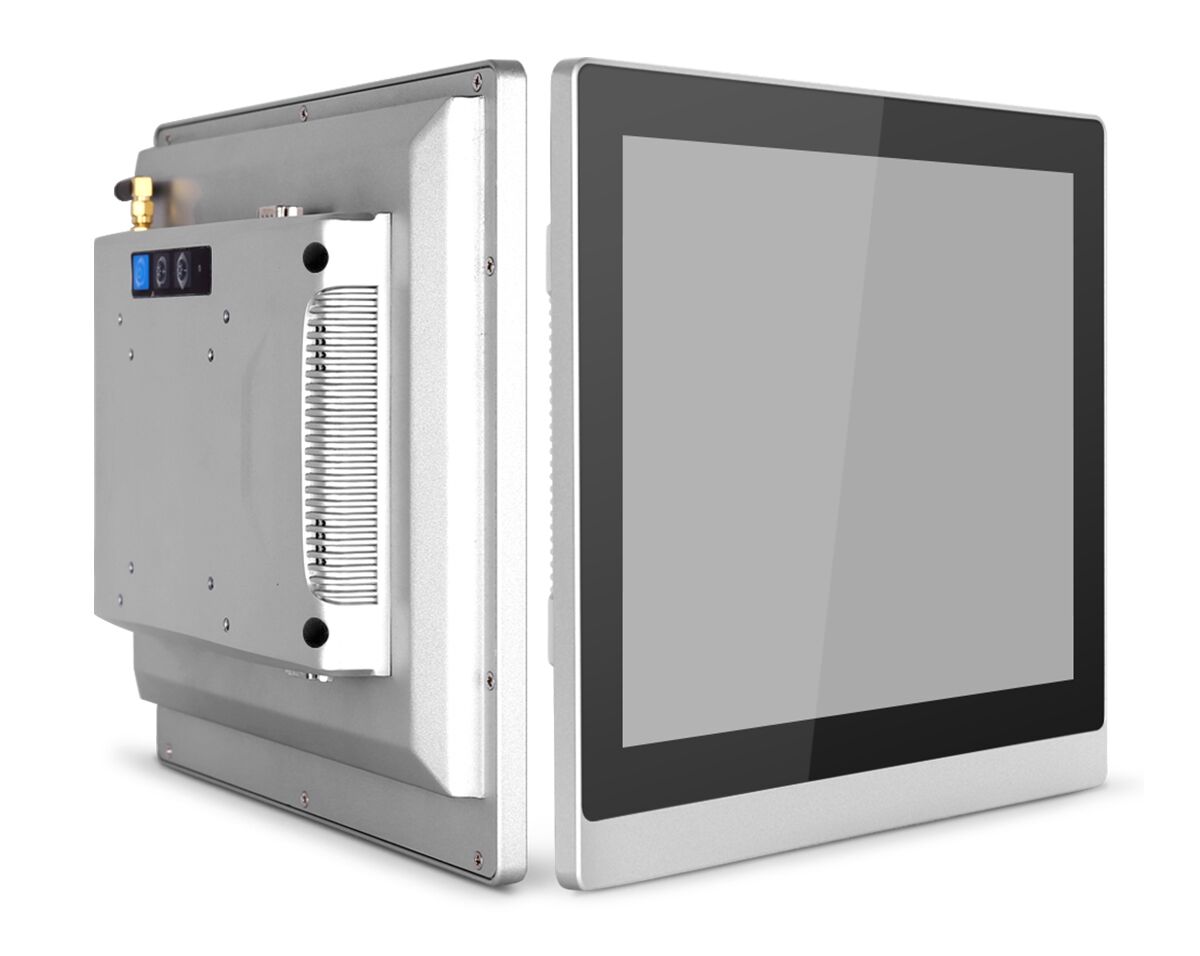

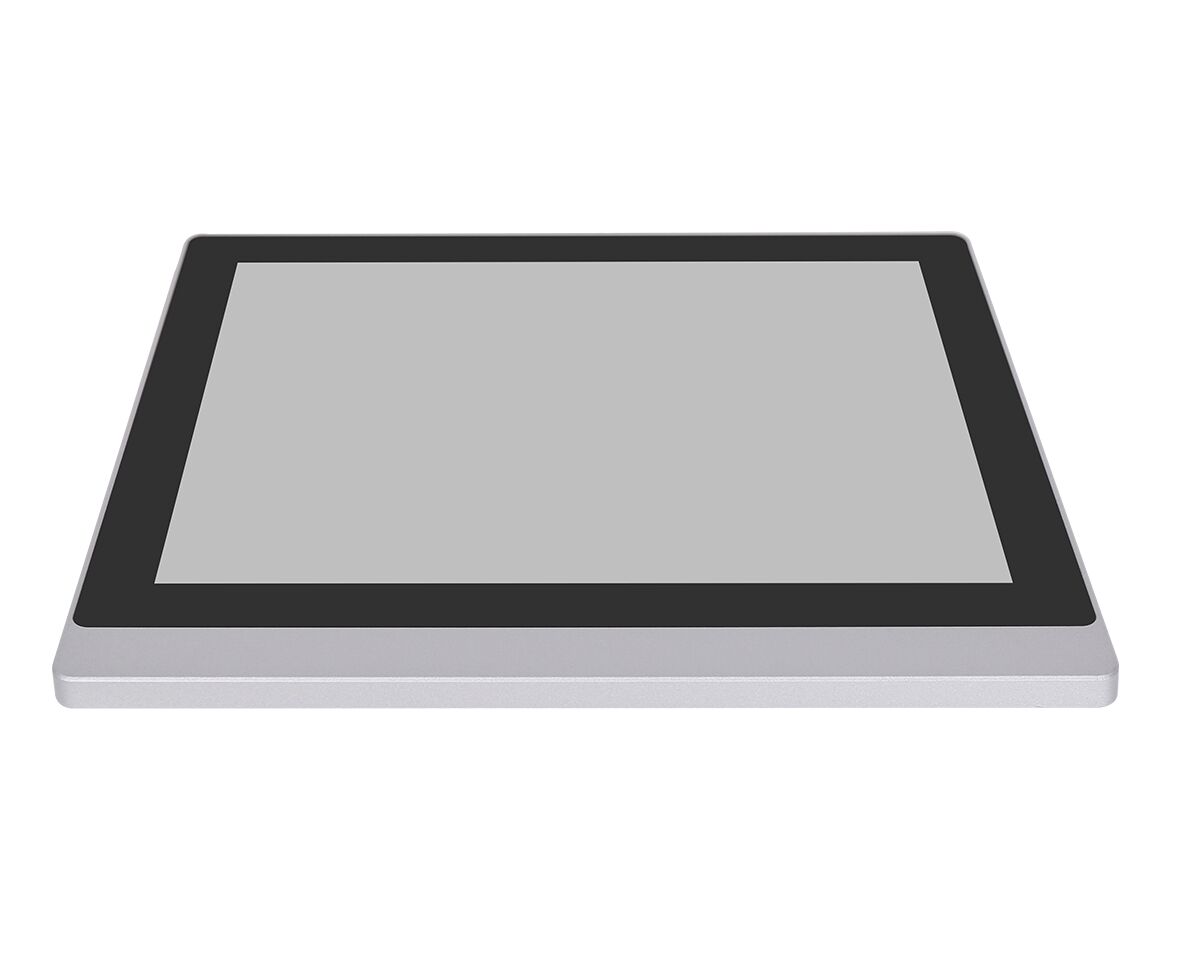

21.5“ Capacitive Touch PC
Model No.
PC System
CPU Intel Celeron Quad Core J1900 2GHz


Intel Celeron 1037 1.8GHz dual core

Intel H81 equipped with Core i3/i5/i7

Chipset Intel Bay trail SOC
Graphic GPU Intel HD Graphics
Audio Integrated Audio Chip
Memory 2G DDR3 (Optional:4G/8G/16G)
Storage 32G SSD (Optional:64G/128G/256G/512G/500G HDD)
Network RJ45, WIFI,3G,4G
OS windows7/8/10,linux,Ubuntu
LCD Panel
IP Rating IP65 Front/IP40 Back
Screen Diagonal 21.5
Display Active Screen Size(mm): 268.1×476.6
Aspect Ratio 16:9
Physical Resolution 1920×1080
Colours Displayed 16.7M
Brightness (cd/m²) 300, Max Be Customized To 1500
Contrast 1000:1
Dot Pitch(mm) 0.264
Typical Reaction Time (ms) 6.5
Visual Angle (°) 85/85/85/85 (L/R/U/D) (Optional: IPS)
Backlight / Backlight Lifetime (hours) Led/50,000
Transmittance Rate ≤80%
Touch Panel
Touch Technology Capacitive 10-point Multi-touch
Touch Connector RJ45
Touch Life (Contacts) Capacitive≥50,000,000
Surface Hardness 3H
Touch Induction Intensity 75g
Operating Temperature (°C) -10 ~ +60
Relative humidity 95% (without condensation)
Housing Material Full body made of Aluminum alloy
Housing (mm) Lx W x H 521.9×338.4×62.5
Mounting VESA75/VESA100
Color Silvery
Power Supply 100-240V 50-60HZ ACDC Active Switching; 12V -5A DC-Out
Working Power 12V-5A
Power Consumption ≤ 48W
External Connectors
2x USB2.0
1xDC 2.5
1x HDMI (Support HDMI output, maximum support 1080P)
1x VGA, DB15, support for synchronous dual display and differential display
1x RJ-45
1x Realtec GB LAN 8111F, WOL-Wake On Lan
1x Audio I/O
1x SIM Slot
2x COM (Default RS232 Protocol, Can Change 422/485 Protocol)
Accessories in Package
User Manual
Installation Hook
Power Supply
2 Years
