Features

  • Driver support for Windows; Linux; Mac; Android
  • High resolution LCD Panels
  • IP65 front panel
  • A+ quality LED backlight panels (50,000H)
  • The most common video connectors available
  • 3mm enhanced display panel, stronger impact resistance
  • Optional with IPS/customerized connector/high brighness
  • VESA75 Mounting
  • 2 year guarantee

Description

Product Name

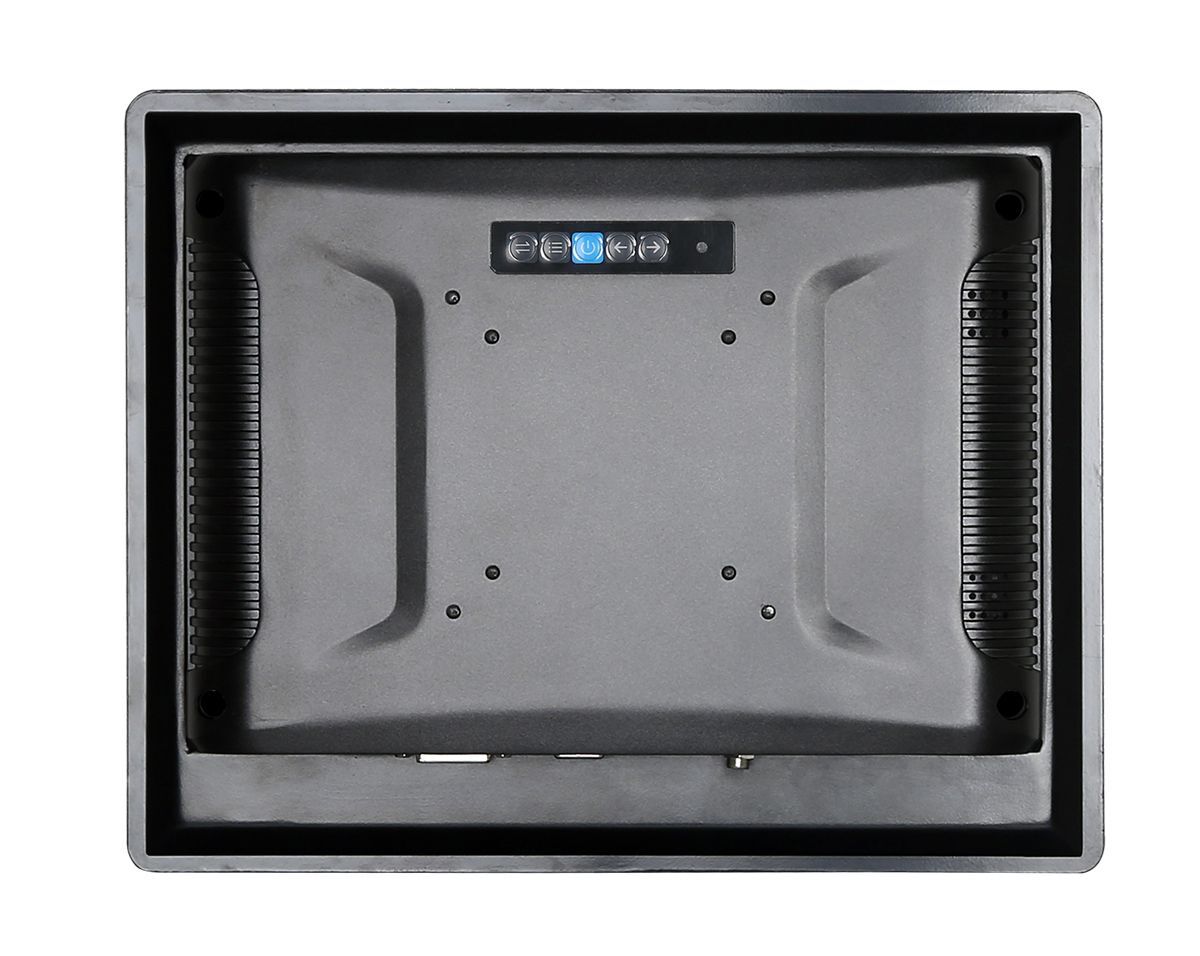

8“ Open Frame Touch Monitor
Model No.
G8CTMOF
LCD Panel
IP Rating IP65 Front/IP40 Back
Screen Diagonal 8
Display Active Screen Size(mm): 162×122.64
Aspect Ratio 4:3
Physical Resolution 1024×768
Colours Displayed 16.7M
Brightness (cd/m²) 350, Max Be Customized To 1500
Contrast 800:1
Dot Pitch(mm) 0.264
Typical Reaction Time (ms) 6.5
Visual Angle Horizontal/Vertical (°) 160/160 (Optional: IPS)
Backlight / Backlight Lifetime (hours) Led/50,000
Transmittance Rate ≤80%
Touch Panel
Touch Technology Capacitive 10-point Multi-touch (Optional: Resistive)
Touch Connector RJ45
Touch Life (Contacts) Resistive≥35,000,000
Capacitive≥50,000,000
Surface Hardness 7H
Touch Induction Intensity 75g
Operation/Mechanical
Operating Temperature -10°~ 60°
Humidity Range(RH) 20% – 95%
Housing Material Front with Brushed Aluminum
Back with Aluminum
Housing (mm) Lx W x H 223x183x42.5
Mounting VESA75
Color Silvery
Stability
Antistatic Exposure 4KV-Air 8KV (Timing ≥ 16KV)
Anti-vibration Apply with GB242 standard
Shock resistance Acceleration:10g; Cycle:11ms
Anti-interference EMC/EMI
Power
Power Supply 100-240V 50-60HZ Active Switching; 12V 4A DC-Out
Operate Current(A) <3.5
Power Consumption 35W
External Connectors
1x DC2.0 11.6-28V input
1x HDMI (Support HDMI output, maximum support 1080P)
1x VGA
1x DVI
1x RJ45 (for touch)
1x Audio I/O
Accessories in Package
User Manual
Installation Hook
Power Supply
Warranty
2 Years
