Description
| Product Name | |
| 13.3″ 2K Portable Touch Monitor | |
| Model No. | |
| S10 | |
| LCD Panel | |
| Screen diagonal (inch) | 13.3 |
| Visual Angle horizontal/vertical (°) | IPS |
| Backlight | WLED |
| Aspect ratio | 16:9 |
| Physical Resolution | 1920RGBx1080P |
| Brightness (cd/m2) | 300 |
| Typical reaction time (ms) | 4 |
| Display active screen size (mm) | 294×165.25 |
| Dot pitch(mm) | 0.153 |
| Colour Gamut | NTSC=72% |
| Color Depth (bits) | 8 |
| Horizontal Scanning Range | 24-60Hz |
| Vertical Scan Range | 24-60Hz |
| Video Display Capability | 480i、480p、576i、576p、720p、1080i 、1080p |
| Touch Panel | |
| Touch Technology | Capacitive |
| Touch Connector | USB |
| Touch Life (Contacts) | Capacitive≥50,000,000 |
| Surface Hardness | 3H |
| Compatibility | |
| Physical Resolution | 800×600-1920x1080P |
| Color Format | RGB |
| Refresh Frequency | 24Hz-60Hz |
| HDMI Version | 1.4 |
| Type-C Version | USB3.1 (apply with DP Protocol) |
| Sound Track | 2.0 Stereo（3.5mm Audio Interface） |
| Power Supply | DP 5V 9V 12V 15V 20V-3A |
| Build in USB HUB (USB2.0） | |
| Operation / Mechanical | |
| Speaker | Build in speaker |
| Color | Black/Silvery |
| Housing Material | Front with Brushed Aluminum Back with Aluminum |
| Housing (mm) L × W × H | 304×195.7x(5-9.7) |
| Gross Weight | 630g |
| Power Supply | PD=5V/9V/12V/15V/20V-3A |
| Power Consumption (W) | 11.25(MAX); 9.25(Normal) |
| Stand-By Consumption (W) | 0.5 |
| Press Button | 3 Physical Button |
| Remote Control | IR Remote Control |
| Operating Temperature (°C) | 0 ~ +40 |
| Storage Temperature (°C) | 0 ~ +60 |
| Operating Humidity Range (RH) | 10% ~ 80% |
| Storage Humidity Range (RH) | 5% ~ 90% |

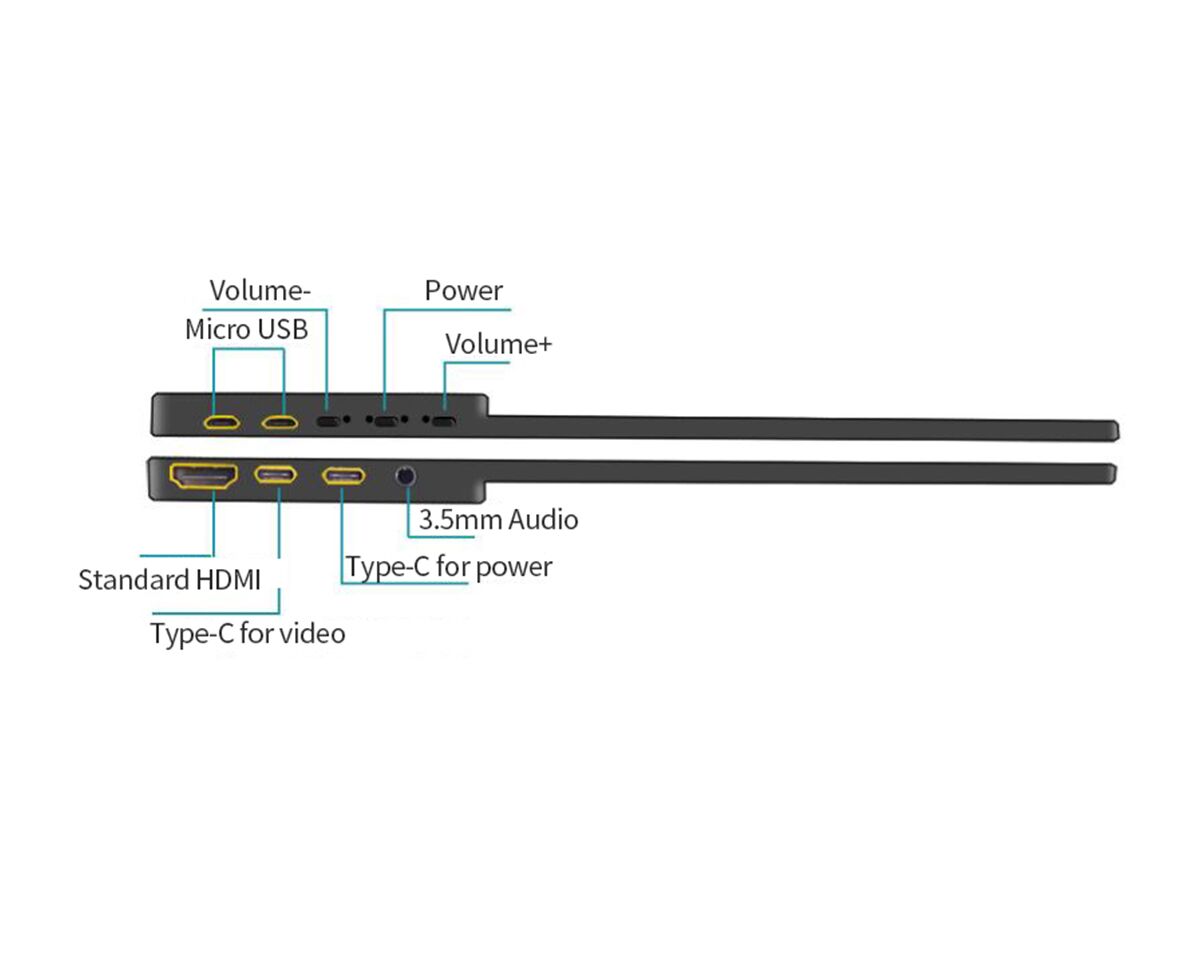

| External Connectors | |
| 2x Type-C | |
| 1 x HDMI | |
| 2 x micro USB | |
| 1 x 3.5mm Audio OUT | |
| Accessories in Package | |
| 1 x 13.3” Display | |
| 1 x HDMI cable | |
| 1 x Remote | |
| 1 x Power supplier | |
| 1 x Type-c to Type-c cable | |
| 2 x OTG Adapter | |
| Warranty | |
| 1 Year | |
