Features

  • High resolution 1920x1080P
  • 10-point capacitive multi-touch
  • IPS panel with 178°viewing angle
  • Front with brushed aluminum and back with aluminum
  • 9.4mm thickness
  • Build in speaker
  • 45% color gramut
  • HDR
  • 2 x Type-C;1 x HDMI;2 x micro USB;1 x 3.5mm Audio
  • 300nits
  • Optical Bonding
  • 1 year guarantee

Category:

Description

Product Name

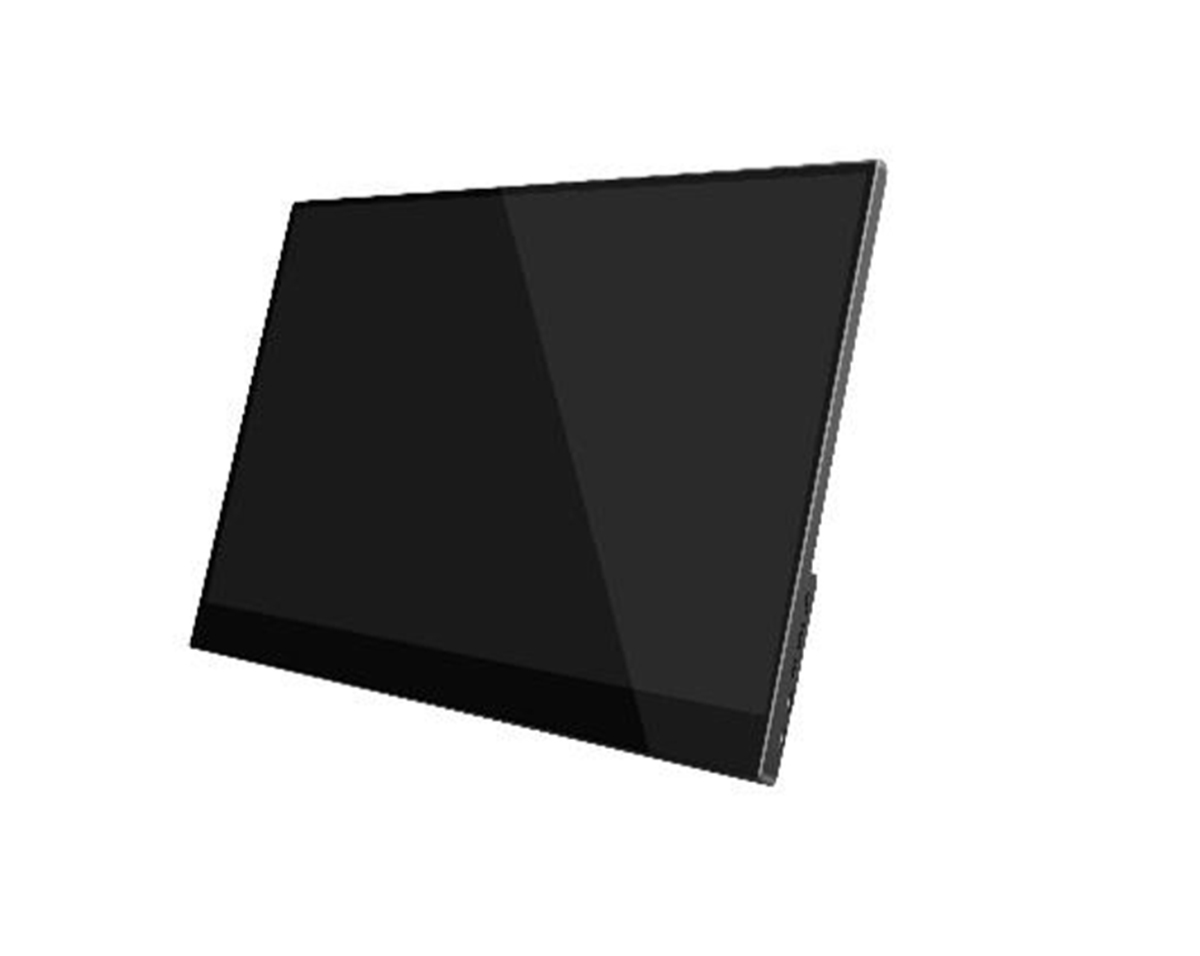

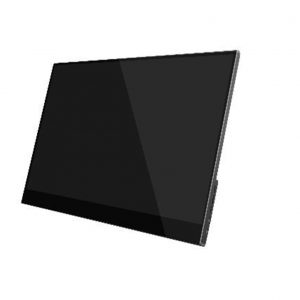

15.6″ 2K Portable Touch Monitor
Model No.
P10
LCD Panel
Screen diagonal (inch) 15.6
Visual Angle horizontal/vertical (°) IPS
Backlight WLED
Aspect ratio 16:9
Physical Resolution 1920RGBx1080P
Brightness (cd/m2) 300
Typical reaction time (ms) 4
Display active screen size (mm) 343.5×193.2
Dot pitch(mm) 0.17925
Colour Gamut NTSC=45%
Color Depth (bits) 8
Horizontal Scanning Range 24-60Hz
Vertical Scan Range 24-60Hz
Video Display Capability 480i、480p、576i、576p、720p、1080i 、1080p
Touch Panel
Touch Technology Capacitive
Touch Connector USB
Touch Life (Contacts) Capacitive≥50,000,000
Surface Hardness 3H
Compatibility
Physical Resolution 800×600-1920x1080P
Color Format RGB
Refresh Frequency 24Hz-60Hz
HDMI Version 1.4
Type-C Version USB3.1 (apply with DP Protocol)
Sound Track 2.0 Stereo(3.5mm Audio Interface)
Power Supply DP 5V 9V 12V 15V 20V-3A
Build in USB HUB (USB2.0)
Operation / Mechanical
Speaker Build in speaker
Color Black/Silvery
Housing Material Front with Brushed Aluminum Back with Aluminum
Housing (mm) L × W × H 224x355x(5-9.4)
Gross Weight 680g
Power Supply PD=5V/9V/12V/15V/20V-3A
Power Consumption (W) 11.25(MAX); 9.25(Normal)
Stand-By Consumption (W) 0.5
Press Button 3 Physical Button
Remote Control IR Remote Control
Operating Temperature (°C) 0 ~ +40
Storage Temperature (°C) 0 ~ +60
Operating Humidity Range (RH) 10% ~ 80%
Storage Humidity Range (RH) 5% ~ 90%

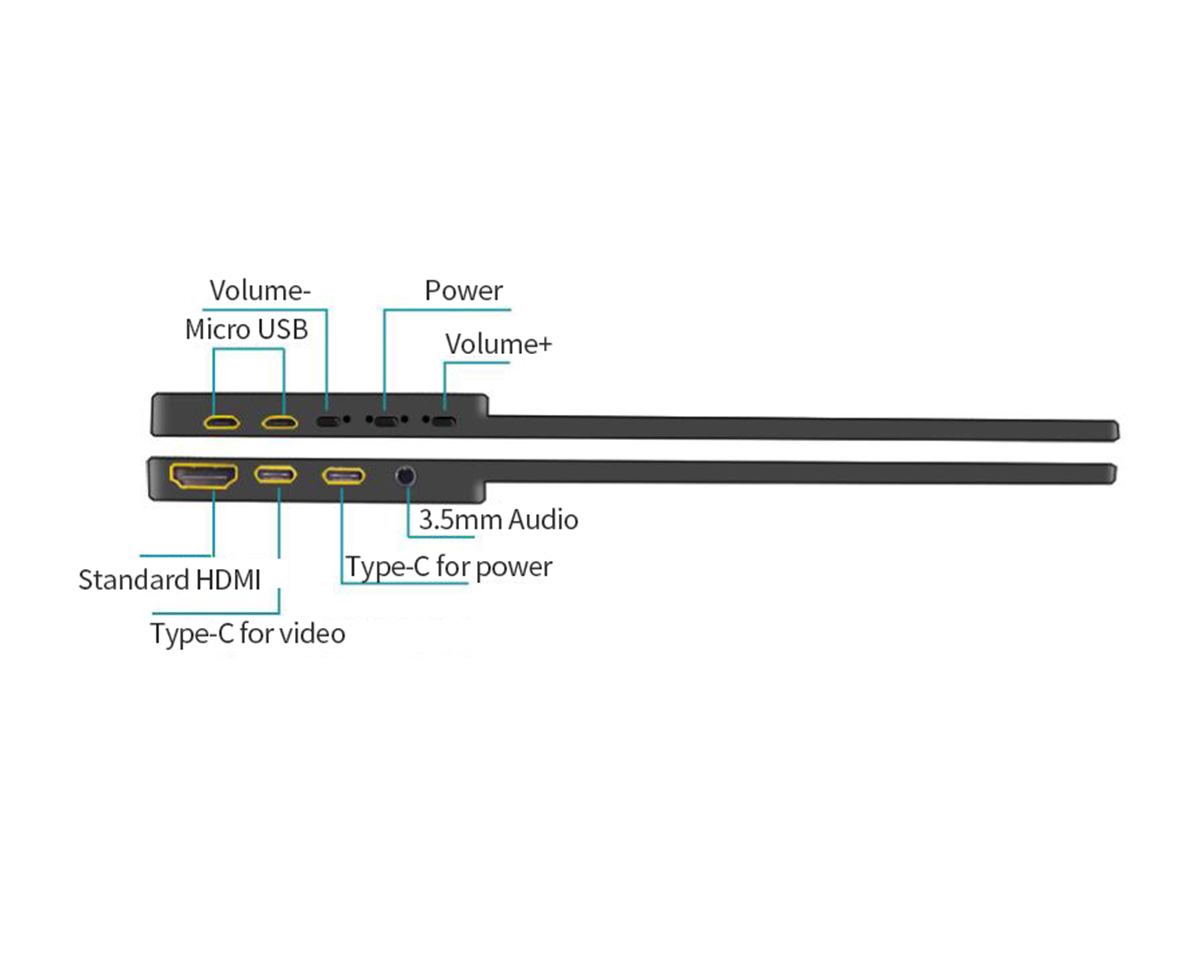

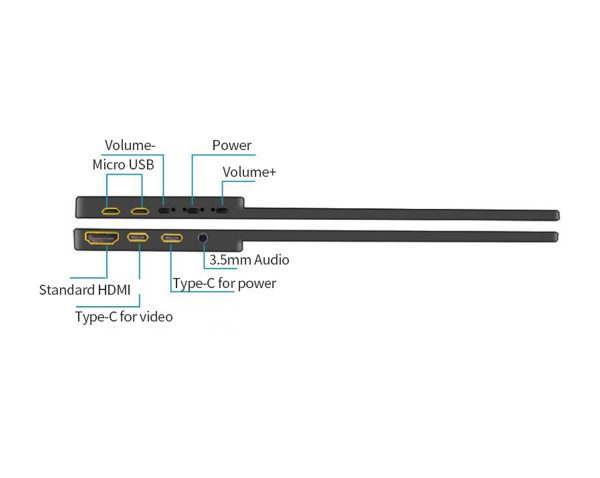

External Connectors
2x Type-C
1 x HDMI
2 x micro USB
1 x 3.5mm Audio OUT
Accessories in Package
1 x 15.6” Display
1 x HDMI cable
1 x Remote
1 x Power supplier
1 x Type-c to Type-c cable
2 x OTG Adapter
Warranty
 1 Year
